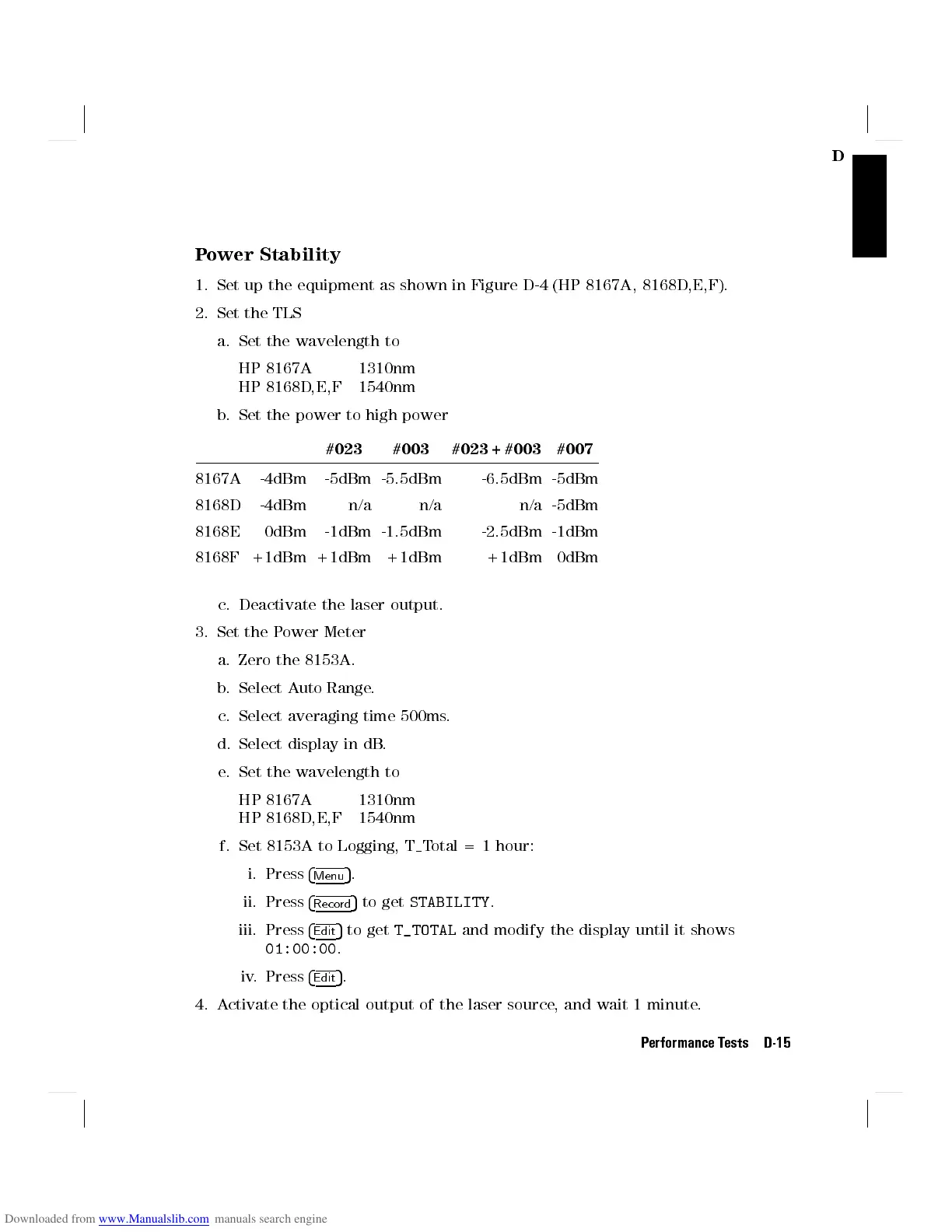

Power Stability
1. Set up the equipment as shown in Figure D-4 (HP 8167A, 8168D
,E,F).
2. Set the TLS
a. Set the wavelength to
HP 8167A 1310nm
HP 8168D,E,F 1540nm
b. Set the power to high power
#023 #003 #023+#003 #007
8167A -4dBm -5dBm -5.5dBm -6.5dBm -5dBm
8168D -4dBm n/a n/a n/a -5dBm
8168E 0dBm -1dBm -1.5dBm -2.5dBm -1dBm
8168F +1dBm +1dBm +1dBm +1dBm 0dBm
c. Deactivate the laser output.
3. Set the Power Meter
a. Zero the 8153A.
b. Select Auto Range.
c. Select averaging time 500ms.
d. Select display in dB.
e. Set the wavelength to
HP 8167A 1310nm
HP 8168D,E,F 1540nm
f. Set 8153A to Logging, T Total = 1 hour:
i. Press
4
Menu
5
.
ii. Press
4
Record
5
to get
STABILITY
.
iii. Press
4
Edit
5
to get
T_TOTAL
and modify the display until it shows
01:00:00
.
iv. Press
4
Edit
5
.
4. Activate the optical output of the laser source, and wait 1 minute.
Performance Tests D-15
