D

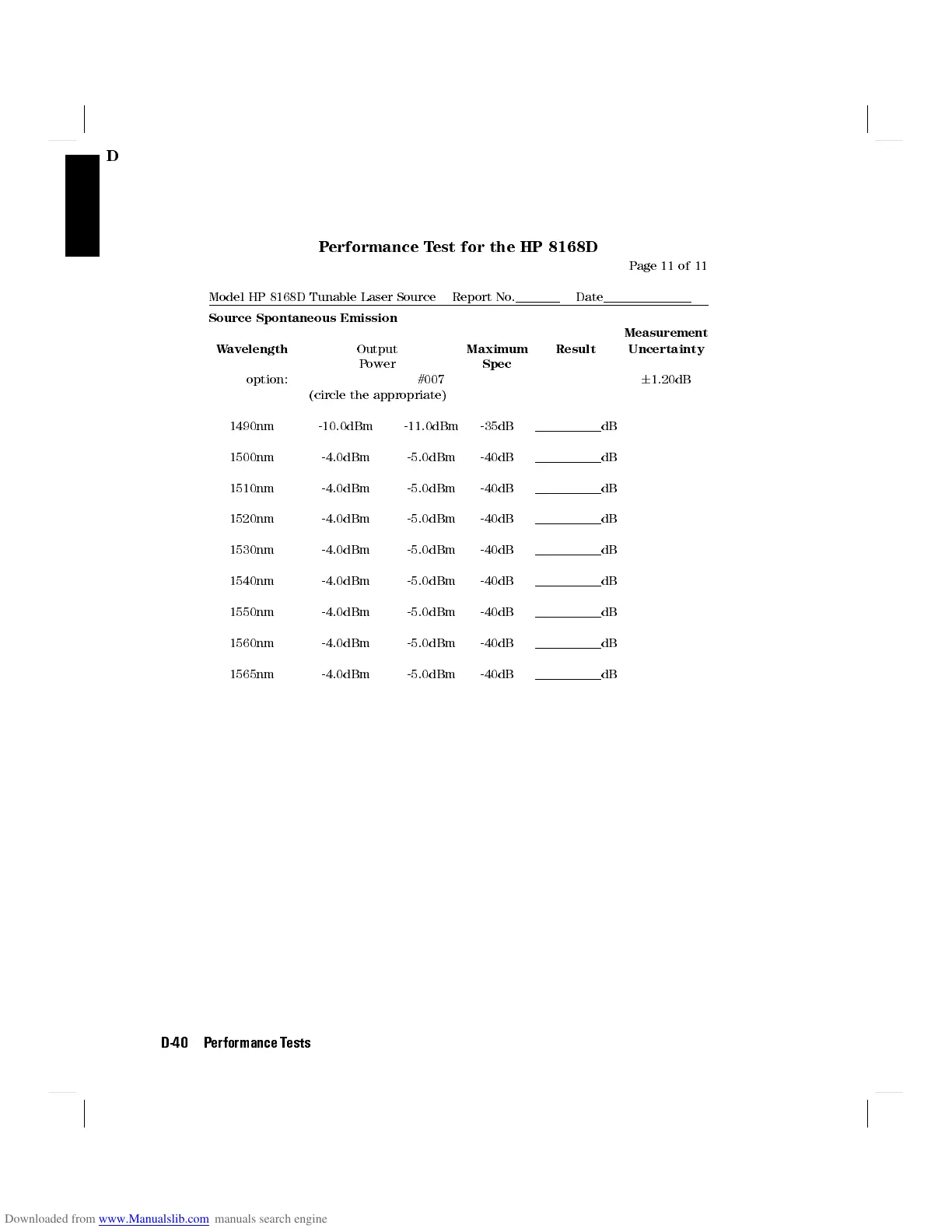

Performance Test for the HP 8168D
Page 11 of 11
Model HP 8168D Tunable Laser Source Report No. Date
Source Spontaneous Emission
Measurement
Wavelength
Output
Maximum Result Uncertainty
Power
Spec
option: #007
6
1.20dB
(circle the appropriate)
1490nm -10.0dBm -11.0dBm -35dB dB
1500nm -4.0dBm -5.0dBm -40dB dB
1510nm -4.0dBm -5.0dBm -40dB dB
1520nm -4.0dBm -5.0dBm -40dB dB
1530nm -4.0dBm -5.0dBm -40dB dB
1540nm -4.0dBm -5.0dBm -40dB dB
1550nm -4.0dBm -5.0dBm -40dB dB
1560nm -4.0dBm -5.0dBm -40dB dB
1565nm -4.0dBm -5.0dBm -40dB dB
D-40 Performance Tests
To Next Page
