D

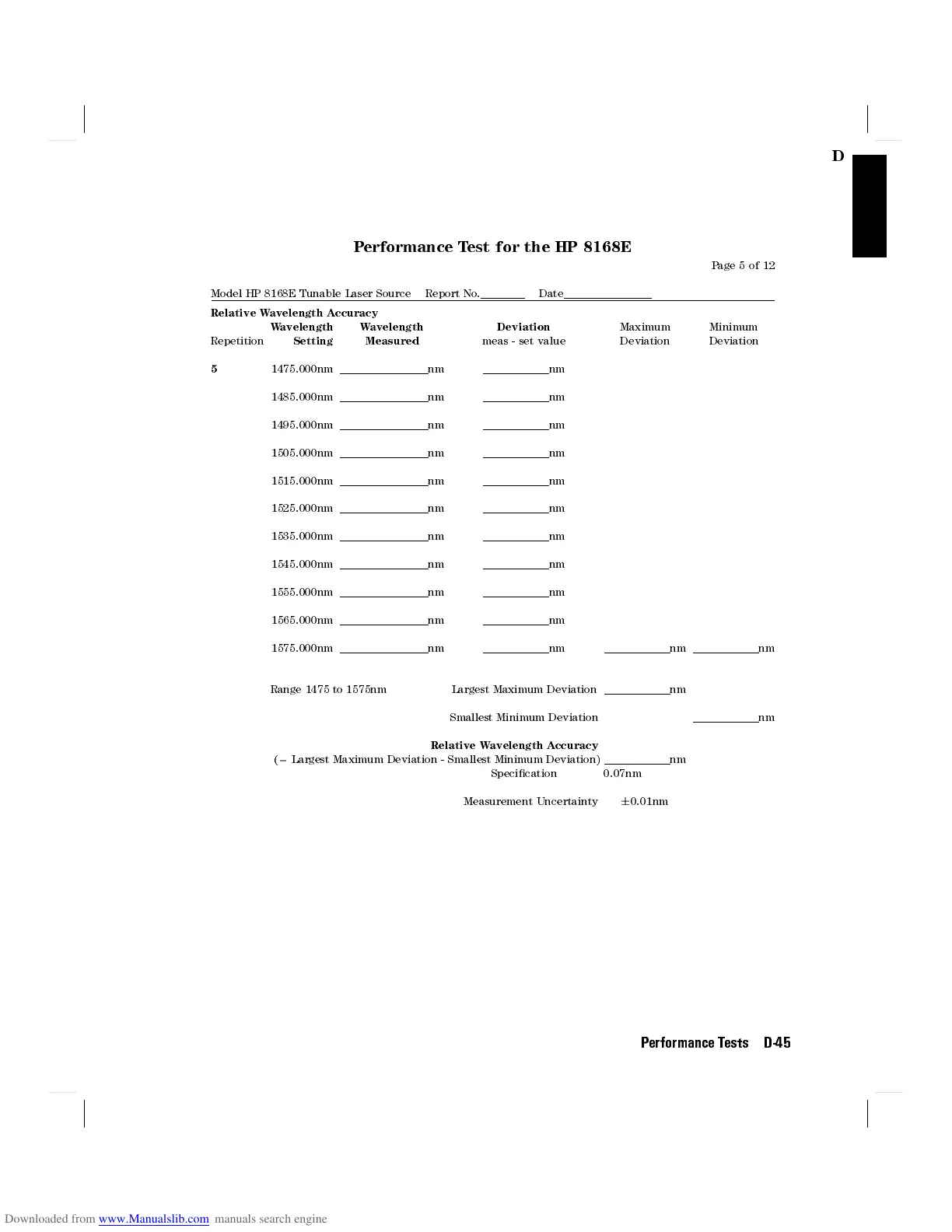

Performance Test for the HP 8168E
Page 5 of 12
Model HP 8168E Tunable Laser Source Report No. Date
Relative Wavelength Accuracy
Wavelength Wavelength Deviation Maximum Minimum
Repetition Setting Measured meas - set value Deviation Deviation
5 1475.000nm nm nm
1485.000nm nm nm
1495.000nm nm nm
1505.000nm nm nm
1515.000nm nm nm
1525.000nm nm nm
1535.000nm nm nm
1545.000nm nm nm
1555.000nm nm nm
1565.000nm nm nm
1575.000nm nm nm nm nm
Range 1475 to 1575nm Largest Maximum Deviation nm
Smallest Minimum Deviation nm
Relative Wavelength Accuracy
(= Largest Maximum Deviation - Smallest Minimum Deviation) nm
Specication 0.07nm
Measurement Uncertainty 6 0.01nm
Performance Tests D-45
