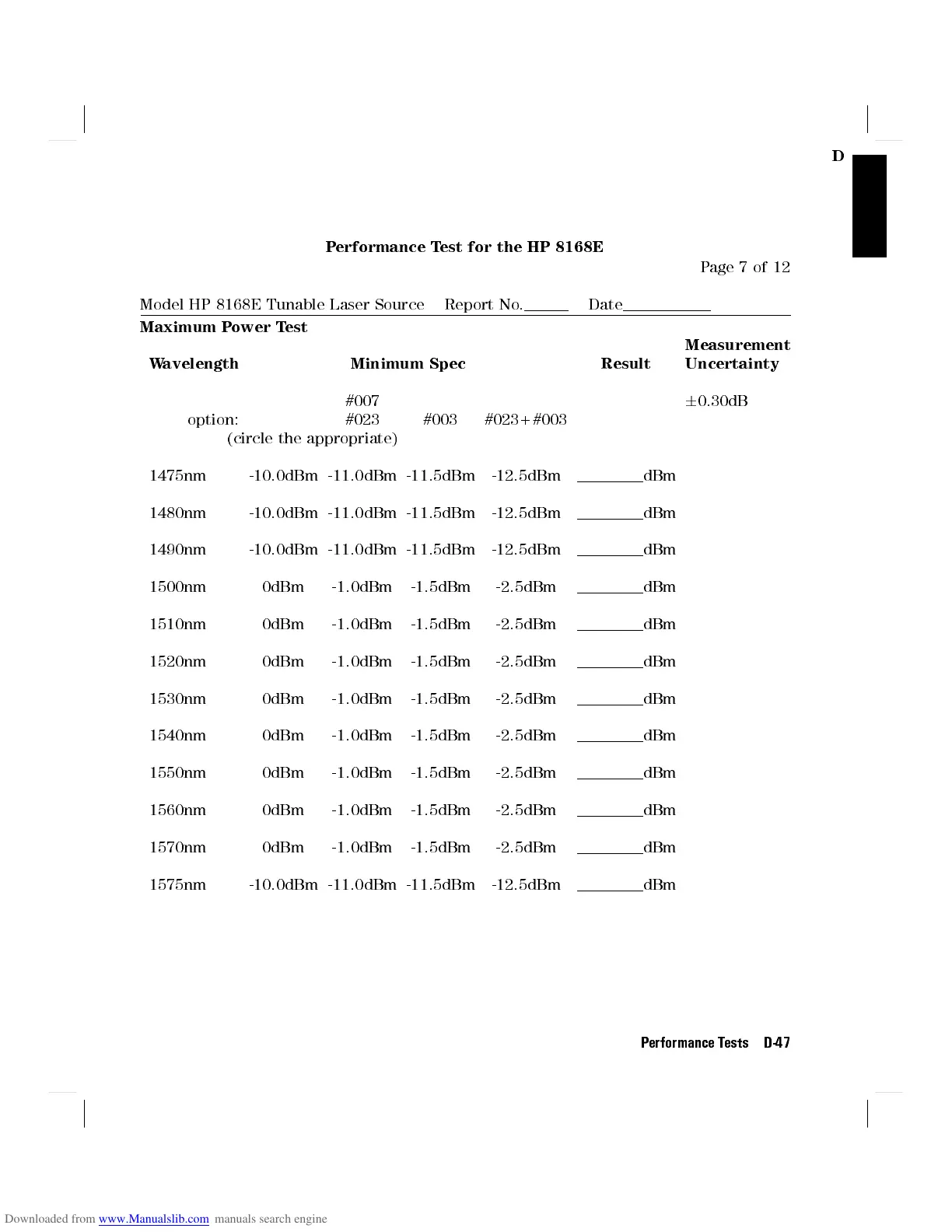

Performance Test for the HP 8168E
Page 7 of 12
Model HP 8168E Tunable Laser Source Report No. Date
Maximum Power Test
Measurement
Wavelength Minimum Spec Result Uncertainty
#007 6 0.30dB
option: #023 #003 #023+#003
(circle the appropriate)
1475nm -10.0dBm -11.0dBm -11.5dBm -12.5dBm dBm
1480nm -10.0dBm -11.0dBm -11.5dBm -12.5dBm dBm
1490nm -10.0dBm -11.0dBm -11.5dBm -12.5dBm dBm
1500nm 0dBm -1.0dBm -1.5dBm -2.5dBm dBm
1510nm 0dBm -1.0dBm -1.5dBm -2.5dBm dBm
1520nm 0dBm -1.0dBm -1.5dBm -2.5dBm dBm
1530nm 0dBm -1.0dBm -1.5dBm -2.5dBm dBm
1540nm 0dBm -1.0dBm -1.5dBm -2.5dBm dBm
1550nm 0dBm -1.0dBm -1.5dBm -2.5dBm dBm
1560nm 0dBm -1.0dBm -1.5dBm -2.5dBm dBm
1570nm 0dBm -1.0dBm -1.5dBm -2.5dBm dBm
1575nm -10.0dBm -11.0dBm -11.5dBm -12.5dBm dBm
Performance Tests D-47
