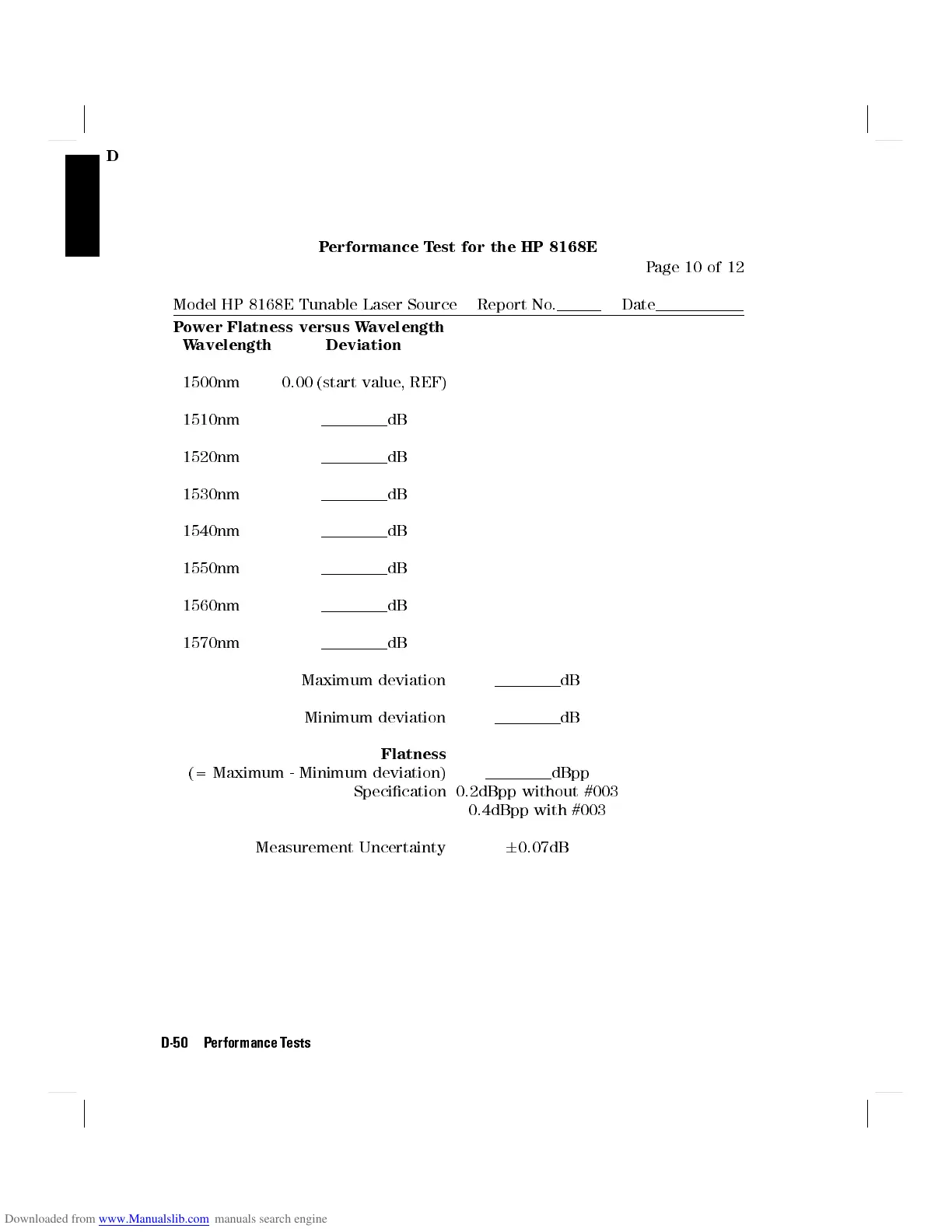

Performance Test for the HP 8168E
Page 10 of 12
Model HP 8168E Tunable Laser Source Report No. Date
Power Flatness versus Wavelength
Wavelength Deviation
1500nm 0.00 (start value, REF)
1510nm dB
1520nm dB
1530nm dB
1540nm dB
1550nm dB
1560nm dB
1570nm dB
Maximum deviation dB
Minimum deviation dB
Flatness
(= Maximum - Minimum deviation) dBpp
Specication 0.2dBpp without #003
0.4dBpp with #003
Measurement Uncertainty
6
0.07dB
D-50 Performance Tests
