D

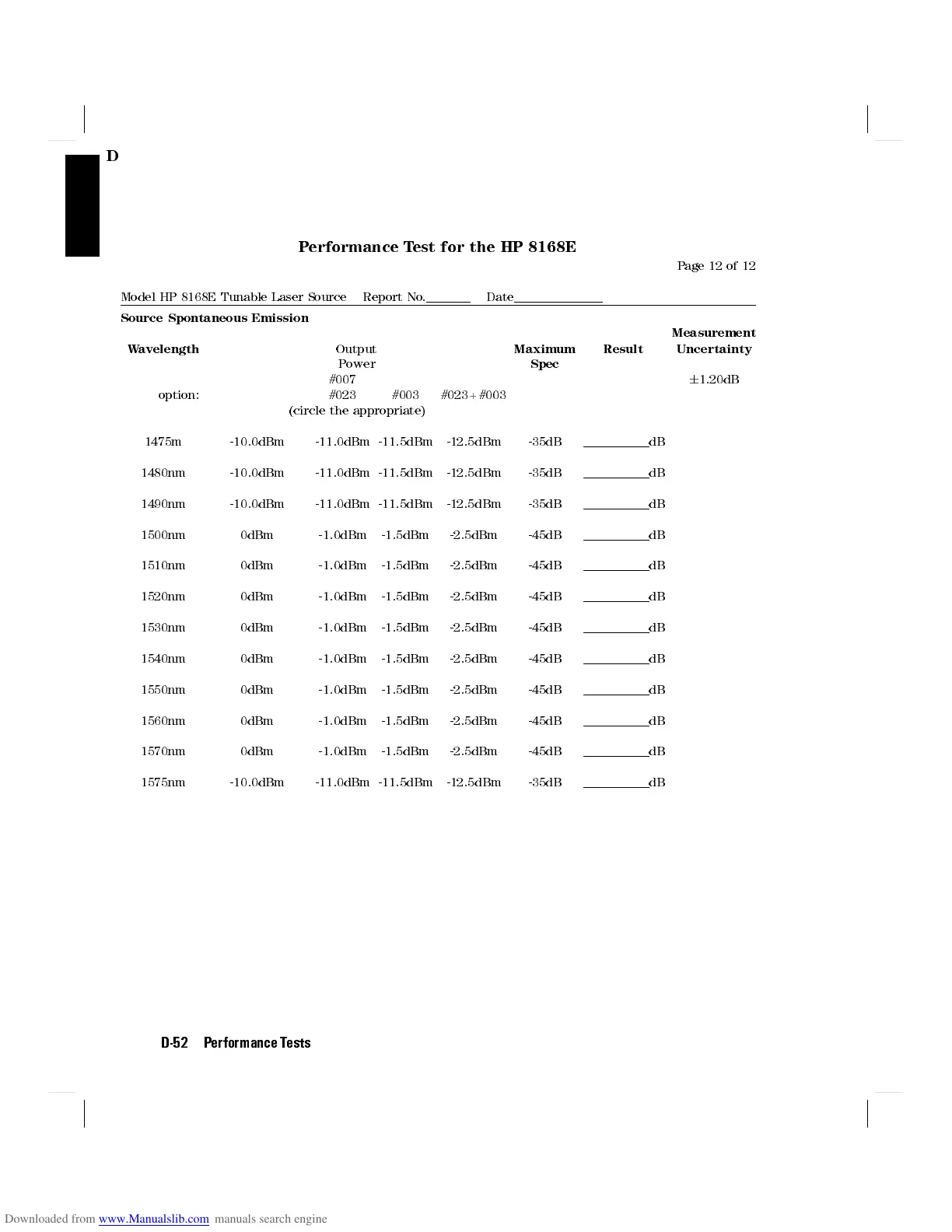

Performance Test for the HP 8168E
Page 12 of 12
Model HP 8168E Tunable Laser Source Report No. Date
Source Spontaneous Emission
Measurement
Wavelength Output Maximum Result Uncertainty
Power Spec
#007 6 1.20dB
option: #023 #003 #023+#003
(circle the appropriate)
1475m -10.0dBm -11.0dBm -11.5dBm -12.5dBm -35dB dB
1480nm -10.0dBm -11.0dBm -11.5dBm -12.5dBm -35dB dB
1490nm -10.0dBm -11.0dBm -11.5dBm -12.5dBm -35dB dB
1500nm 0dBm -1.0dBm -1.5dBm -2.5dBm -45dB dB
1510nm 0dBm -1.0dBm -1.5dBm -2.5dBm -45dB dB
1520nm 0dBm -1.0dBm -1.5dBm -2.5dBm -45dB dB
1530nm 0dBm -1.0dBm -1.5dBm -2.5dBm -45dB dB
1540nm 0dBm -1.0dBm -1.5dBm -2.5dBm -45dB dB
1550nm 0dBm -1.0dBm -1.5dBm -2.5dBm -45dB dB
1560nm 0dBm -1.0dBm -1.5dBm -2.5dBm -45dB dB
1570nm 0dBm -1.0dBm -1.5dBm -2.5dBm -45dB dB
1575nm -10.0dBm -11.0dBm -11.5dBm -12.5dBm -35dB dB
D-52 Performance Tests
