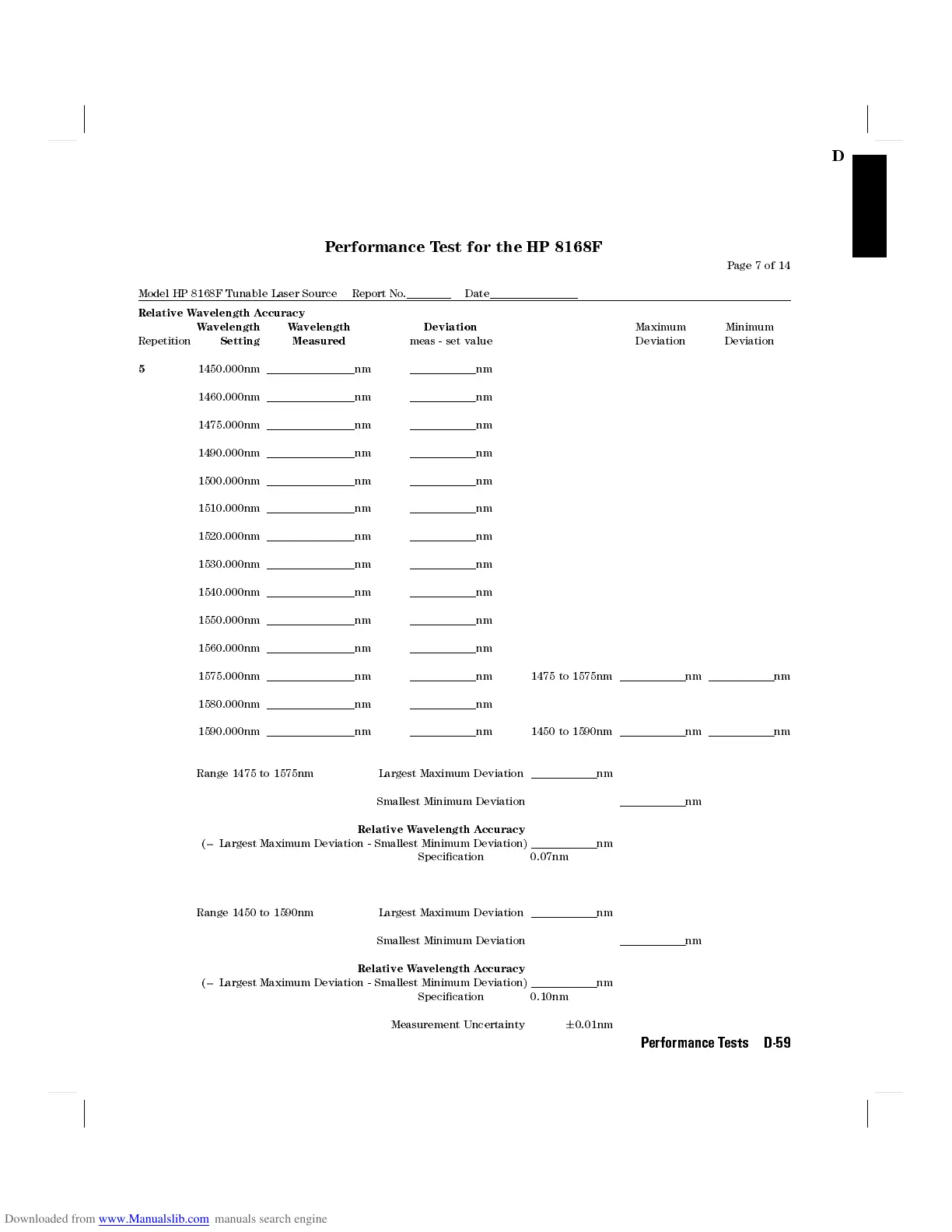

Performance Test for the HP 8168F
Page 7 of 14
Model HP 8168F Tunable Laser Source Report No. Date
Relative Wavelength Accuracy
Wavelength Wavelength Deviation Maximum Minimum
Repetition Setting Measured meas - set value Deviation Deviation
5 1450.000nm nm nm
1460.000nm nm nm
1475.000nm nm nm
1490.000nm nm nm
1500.000nm nm nm
1510.000nm nm nm
1520.000nm nm nm
1530.000nm nm nm
1540.000nm nm nm
1550.000nm nm nm
1560.000nm nm nm
1575.000nm nm nm 1475 to 1575nm nm nm
1580.000nm nm nm
1590.000nm nm nm 1450 to 1590nm nm nm
Range 1475 to 1575nm Largest Maximum Deviation nm
Smallest Minimum Deviation nm
Relative Wavelength Accuracy
(= Largest Maximum Deviation - Smallest Minimum Deviation) nm
Specication 0.07nm
Range 1450 to 1590nm Largest Maximum Deviation nm
Smallest Minimum Deviation nm
Relative Wavelength Accuracy
(= Largest Maximum Deviation - Smallest Minimum Deviation) nm
Specication 0.10nm
Measurement Uncertainty 6 0.01nm
Performance Tests D-59
