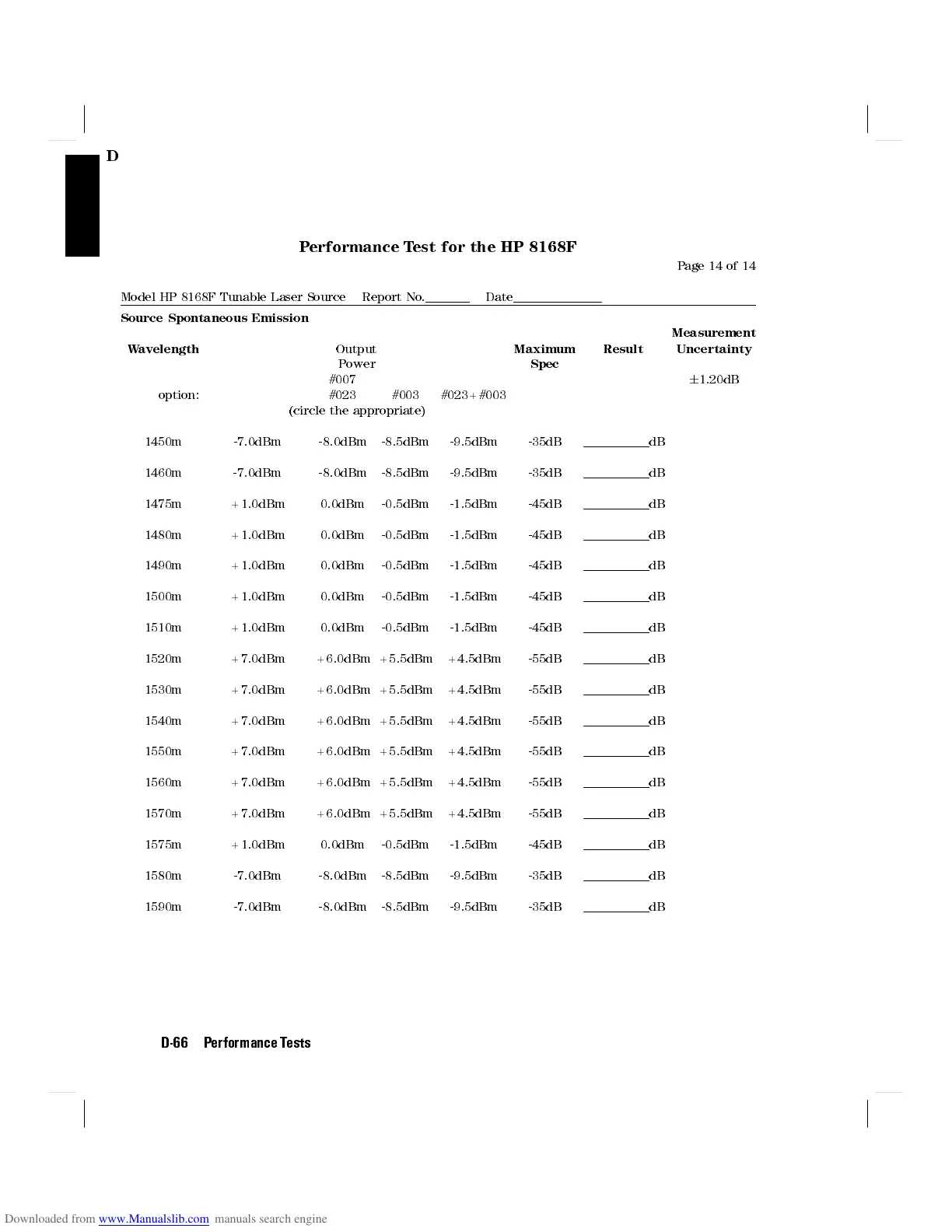

Performance Test for the HP 8168F
Page 14 of 14
Model HP 8168F Tunable Laser Source Report No. Date
Source Spontaneous Emission
Measurement
Wavelength Output Maximum Result Uncertainty
Power Spec
#007 6 1.20dB
option: #023 #003 #023+#003
(circle the appropriate)
1450m -7.0dBm -8.0dBm -8.5dBm -9.5dBm -35dB dB
1460m -7.0dBm -8.0dBm -8.5dBm -9.5dBm -35dB dB
1475m +1.0dBm 0.0dBm -0.5dBm -1.5dBm -45dB dB
1480m +1.0dBm 0.0dBm -0.5dBm -1.5dBm -45dB dB
1490m +1.0dBm 0.0dBm -0.5dBm -1.5dBm -45dB dB
1500m +1.0dBm 0.0dBm -0.5dBm -1.5dBm -45dB dB
1510m +1.0dBm 0.0dBm -0.5dBm -1.5dBm -45dB dB
1520m +7.0dBm +6.0dBm +5.5dBm +4.5dBm -55dB dB
1530m +7.0dBm +6.0dBm +5.5dBm +4.5dBm -55dB dB
1540m +7.0dBm +6.0dBm +5.5dBm +4.5dBm -55dB dB
1550m +7.0dBm +6.0dBm +5.5dBm +4.5dBm -55dB dB
1560m +7.0dBm +6.0dBm +5.5dBm +4.5dBm -55dB dB
1570m +7.0dBm +6.0dBm +5.5dBm +4.5dBm -55dB dB
1575m +1.0dBm 0.0dBm -0.5dBm -1.5dBm -45dB dB
1580m -7.0dBm -8.0dBm -8.5dBm -9.5dBm -35dB dB
1590m -7.0dBm -8.0dBm -8.5dBm -9.5dBm -35dB dB
