A description of the Front Panel

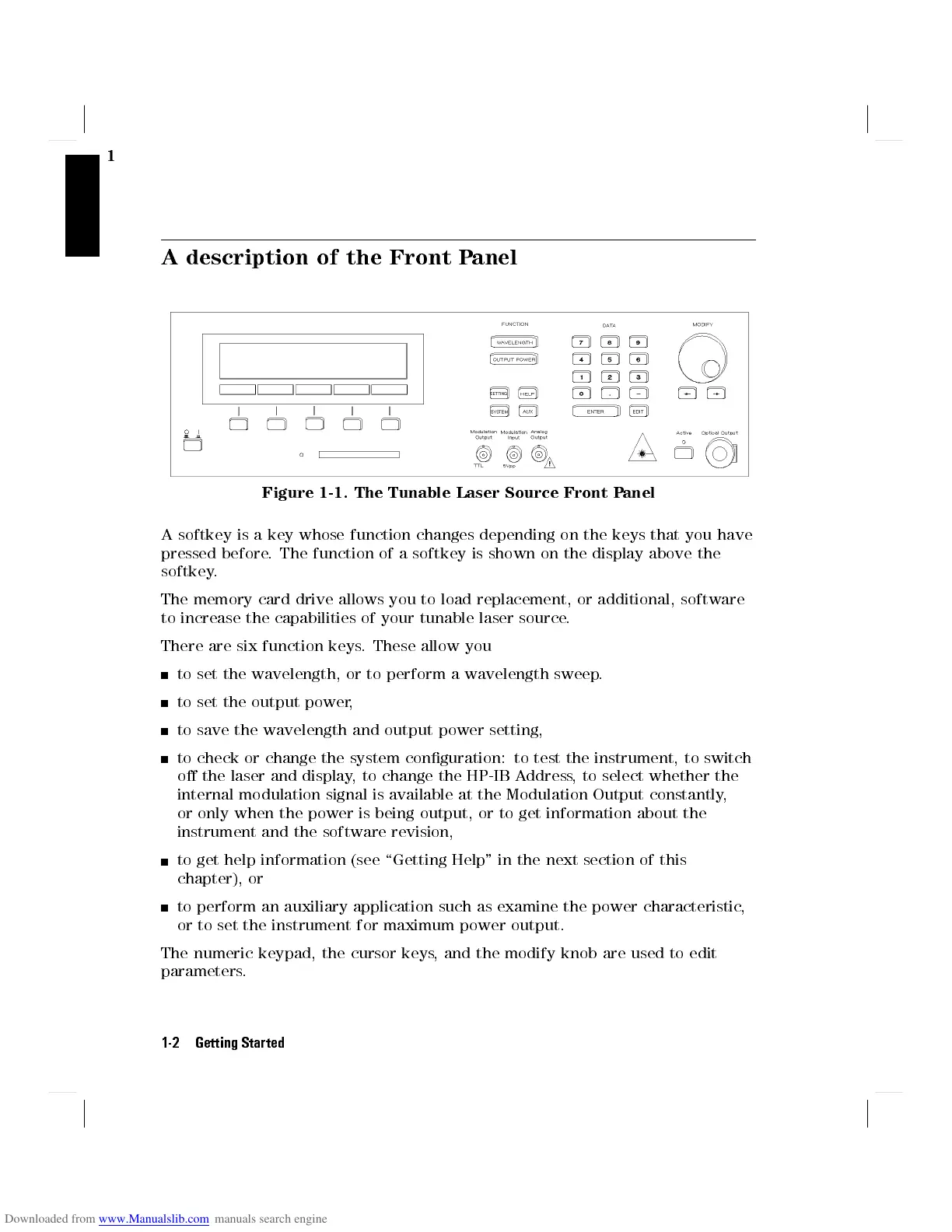

Figure 1-1. The Tunable Laser Source Front Panel
A softkey is a key whose function changes depending on the keys that you have
pressed before. The function of a softkey is shown on the display above the
softkey.
The memory card drive allows you to load replacement, or additional, software
to increase the capabilities of your tunable laser source.
There are six function keys. These allow you
to set the wavelength, or to perform a wavelength sweep.
to set the output power,
to save the wavelength and output power setting,
to check or change the system conguration: to test the instrument, to switch
o the laser and display, to change the HP-IB Address, to select whether the
internal modulation signal is available at the Modulation Output constantly,
or only when the power is being output, or to get information about the
instrument and the software revision,
to get help information (see \Getting Help" in the next section of this
chapter), or
to perform an auxiliary application such as examine the power characteristic,
or to set the instrument for maximum power output.
The numeric keypad, the cursor keys, and the modify knob are used to edit
parameters.
