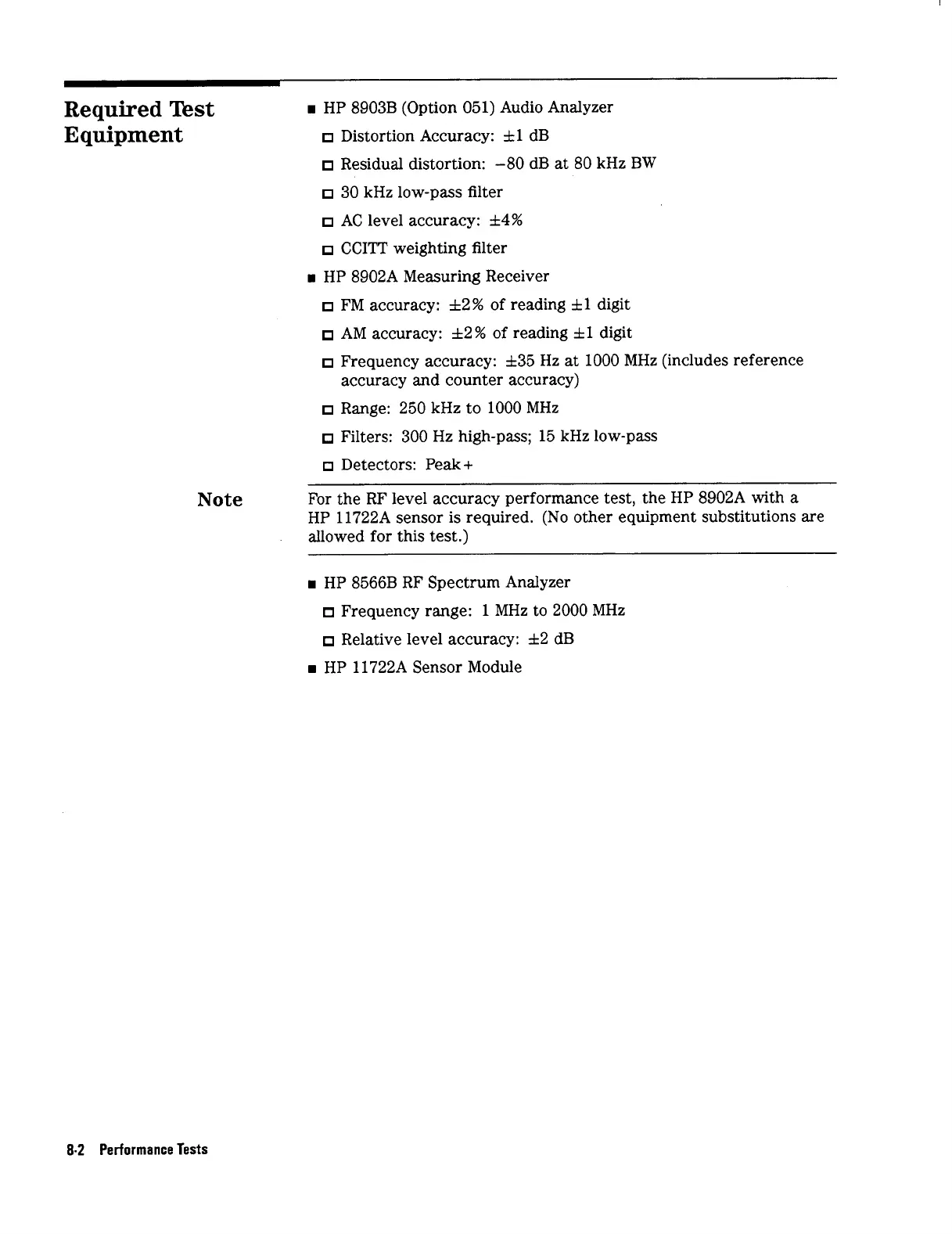

Required lkst
Equipment
w
HP 8903B (Option 051) Audio Analyzer
Distortion Accuracy:
11
dB
Residual distortion:
-80
dB at
80
kHz
BW
30
kHz
low-pass filter
AC
level accuracy:
f4%
CCITT weighting filter
w
HP 8902A Measuring Receiver
FM accuracy: f2% of reading
11
digit
AM
accuracy: f2% of reading
fl
digit
Frequency accuracy: 135
Hz
at
1000
MHz
(includes reference
Range: 250 kHz
to
1000
MHz
Filters: 300
Hz
high-pass; 15
kHz
low-pass
Detectors: Peak+
accuracy and counter accuracy)
Note
For the RF level accuracy performance test, the HP 8902A with a
HP 11722A sensor
is
required.
(No
other equipment substitutions are
allowed for this test.)
w
HP 8566B RF Spectrum Analyzer
Frequency range:
1
MHz
to 2000
MHz
Relative level accuracy:
f2
dB
w
HP 11722A Sensor Module
8-2
Performance
Tests
