Harmonics Performance Test
Harmonics
Performance
Tkst
Connect the Test
Equipment
ptest3.dm
Spectrum Analyzer
I
HP 8647A under test
Configure the
Spectrum Analyzer
Configure the
Hp
86478
Measure Harmonic
Levels

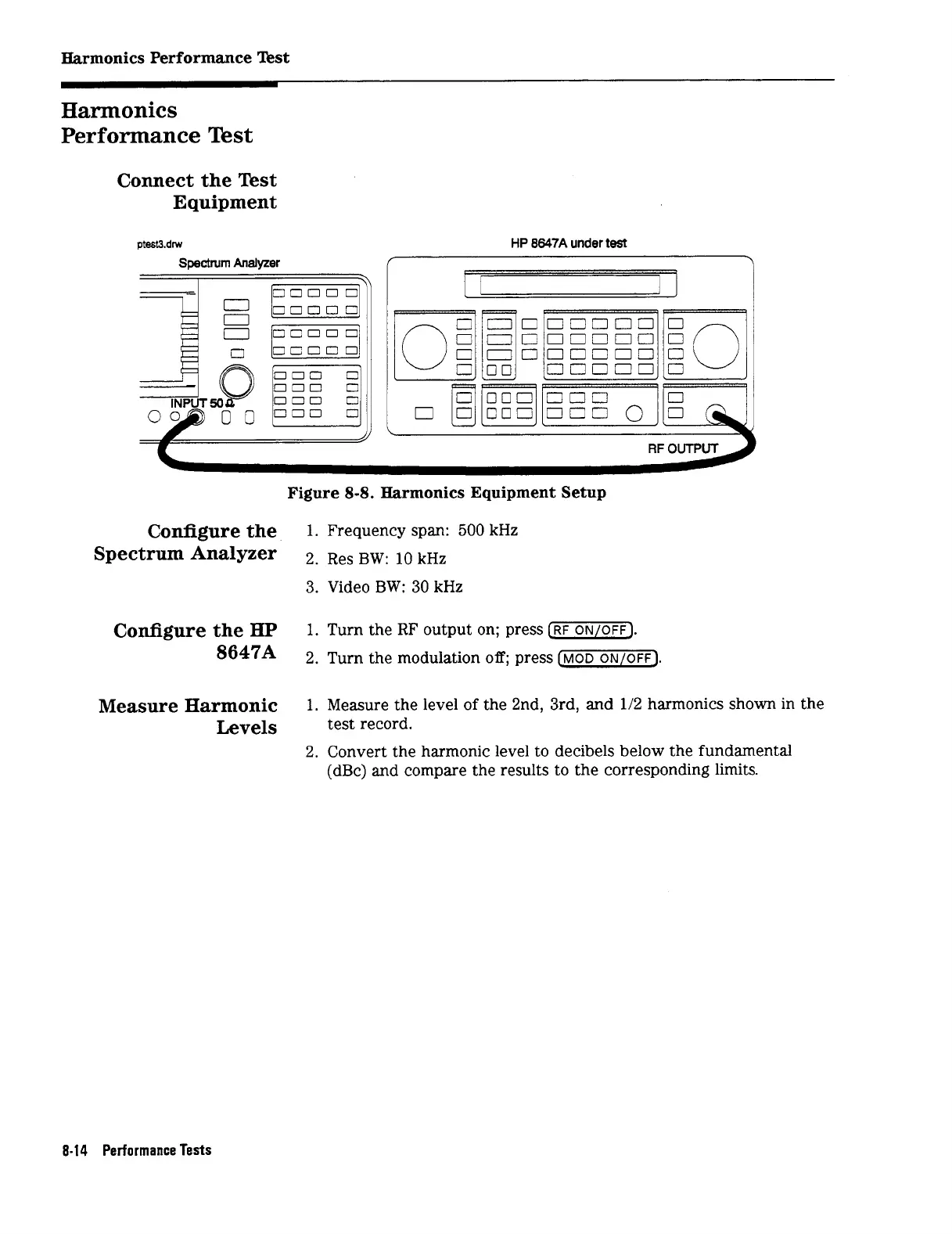

Figure 8-8. Harmonics Equipment Setup
1. Frequency span: 500 kHz
2. Res BW: 10 kHz
3. Video BW: 30 kHz
1. Turn the RF output on; press I-].
2. Turn the modulation off press [MOD ONIOFF].
I
1. Measure the level of the 2nd, 3rd, and 1/2 harmonics shown in the
test record.
2. Convert the harmonic level to decibels below the fundamental
(dBc) and compare the results to the corresponding limits.
8-14 Performance Tests
