HP 8647A User Manual

FM Accuracy Performance Test
FM Accuracy
Performance Tkst
Connect the Test
Equipment
HP 8647A under test
- 7 i
1
0 0000 0
0 oooofi
L
00 ooou *
ptesrl .dm
Measuring Receiver

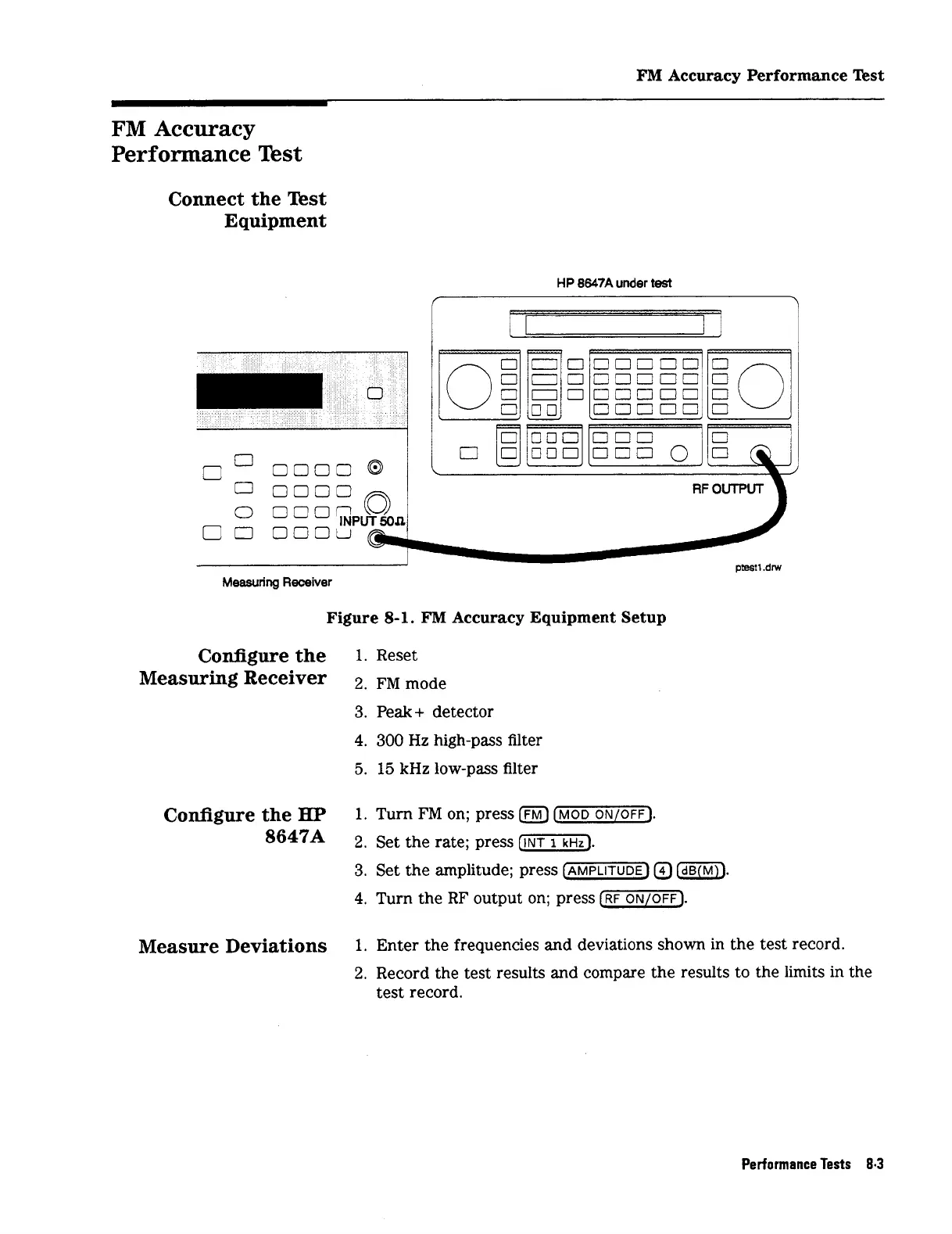

Figure 8-1. FM Accuracy Equipment Setup
Configure the
Measuring Receiver
Configure the
HP
8647A
Measure Deviations
1. Reset
2. FMmode
3. Peak+ detector
4. 300 Hz high-pass filter
5. 15 kHz low-pass filter
1. Turn FM on; press LFM) (MOD ON/OFFj.
2. Set the rate; press LINT).
3. Set the amplitude; press
4. Turn the RF output on; press [-).
@ LWU.
1. Enter the frequencies and deviations shown in the test record.
2. Record the test results and compare the results to the limits in the
test record.
Performance Tests 8.3
