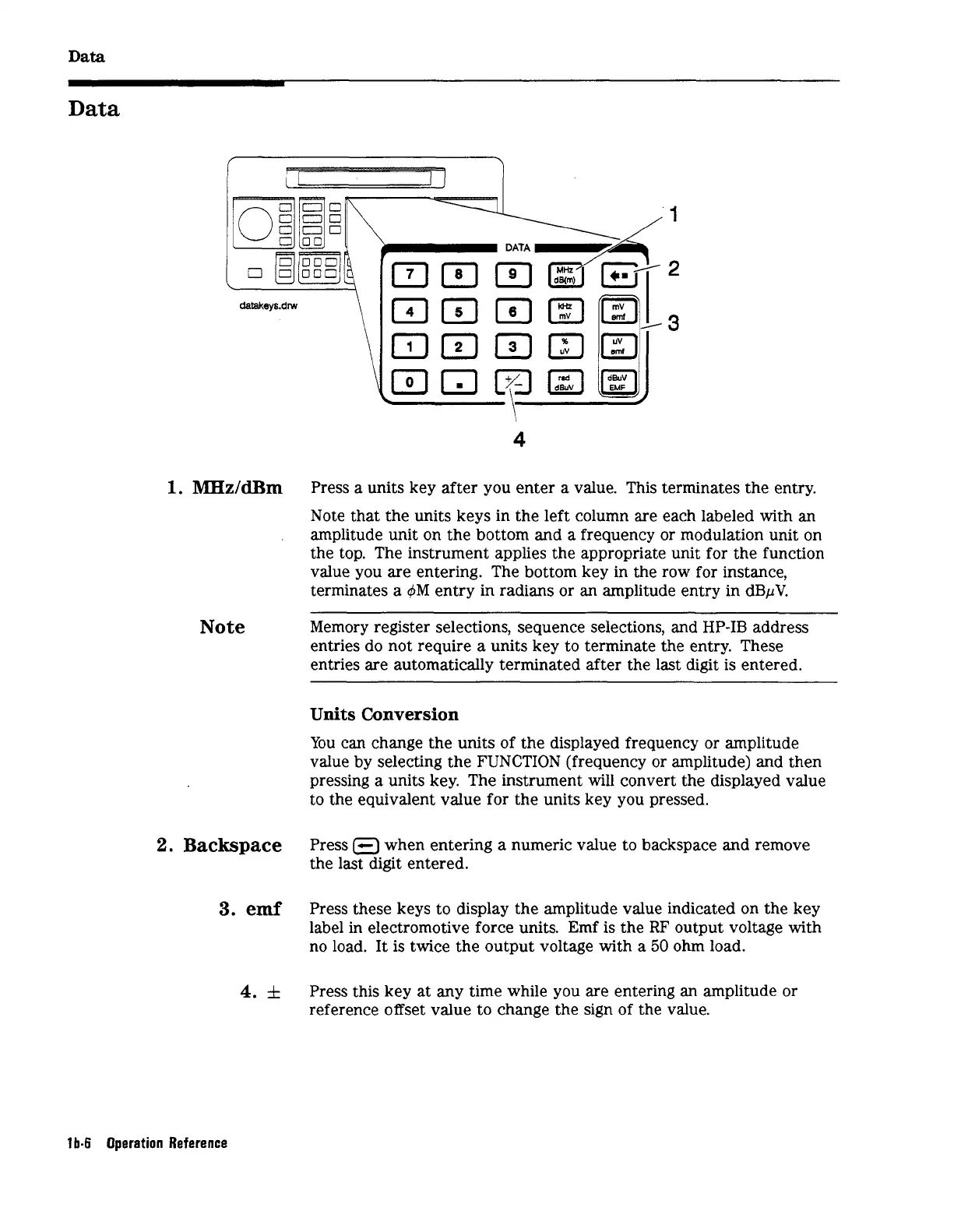

Data
Data
1
2
1.
MHz/dJ3m
Note
2.
Backspace
3.
emf
4.
4
Press a units key after you enter a value. This terminates the entry.
Note that the units keys in the left column are each labeled with an
amplitude unit on the bottom and a frequency or modulation unit on
the top. The instrument applies the appropriate unit for the function
value you are entering. The bottom key in the row for instance,
terminates a
q5M
entry in radians or an amplitude entry in dBpV.
~~ ~~ ~
Memory register selections, sequence selections, and HP-IB address
entries do not require a units key to terminate the entry. These
entries are automatically terminated after the last digit is entered.
Units Conversion
You
can change the units of the displayed frequency or amplitude
value by selecting the FUNCTION (frequency or amplitude) and then
pressing a units key. The instrument will convert the displayed value
to the equivalent value for the units key you pressed.
Press
[--1
when entering
a
numeric value to backspace and remove
the last digit entered.
Press these keys to display the amplitude value indicated on the key
label in electromotive force units. Emf is the RF output voltage with
no load.
It
is twice the output voltage with a
50
ohm load.
Press this key at any time while you are entering an amplitude or
reference offset value to change the sign of the value.
1
b-6
Operation
Reference
