HP-IB Status
The IEEE 488.2 standard provides a status byte for instrument status
reporting. This status byte may be accessed by using IEEE
488.2
Common Commands and SCPI Status Commands. The following figure
shows the status reporting structure for instrument operation.
The following examples will be used to explain instrument operation
status.
rn External Modulation Input Status
rn Reverse Power Protection Status
rn Unspecified Power (Amplitude) Entry Status
General IEEE
488.2 status reporting will not be covered. The above
operating status will satisfy most needs for status reporting.
Reporting
POWer Status Register NOTE:
Unmarked tits in registers do not
apply for normal operation st~tus.
These blts mclrt be masked when
querying status. See me
programming examples.
Reverse Power
Unspecitled Amplitude
Ext. Mod. Level Hlgh
Ext Mod. Level Low
Unspecified
Devlce Dependent Em
Execdon Em
Comnand Error
status.dnv

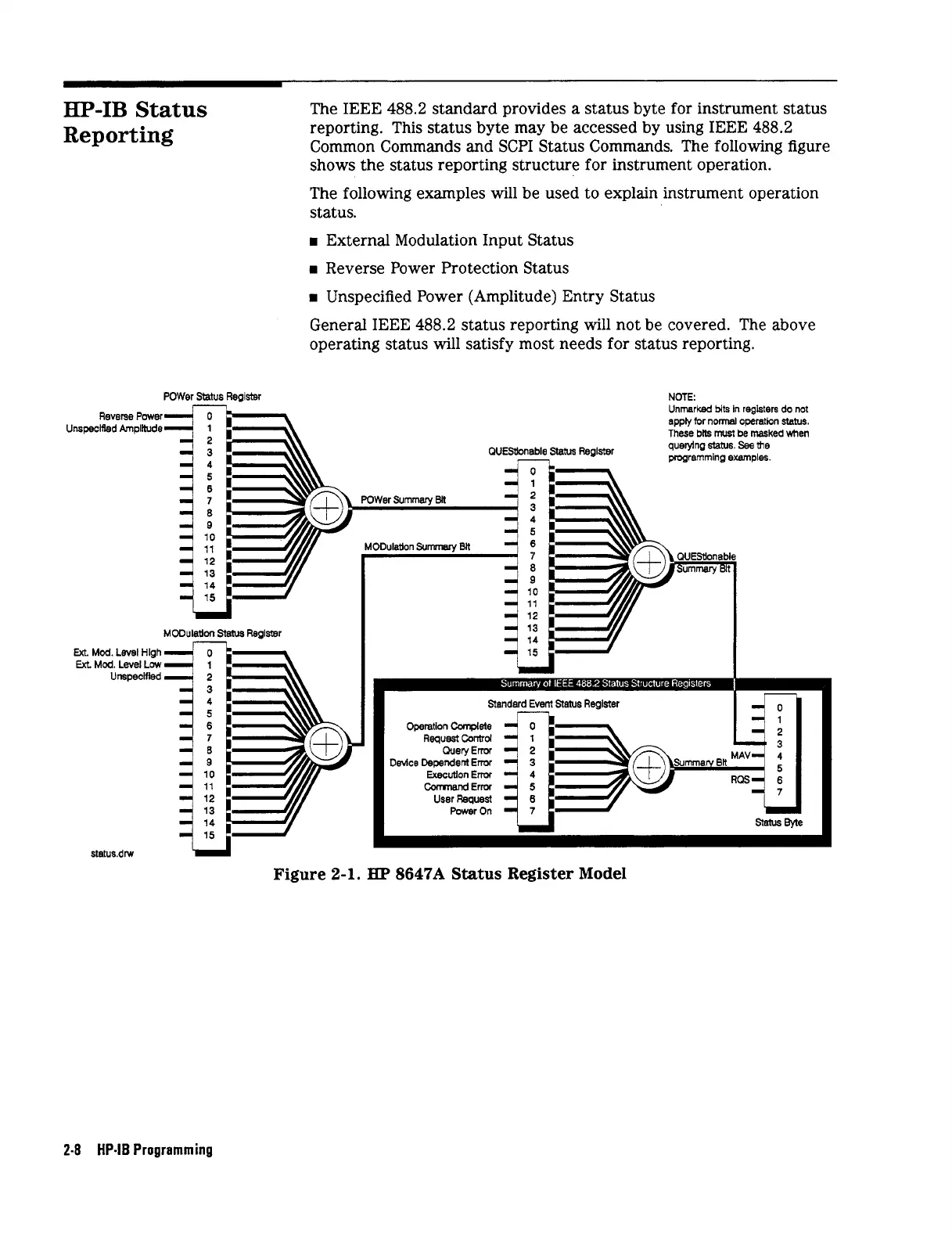

Figure 2-1. HP 8647A Status Register Model
