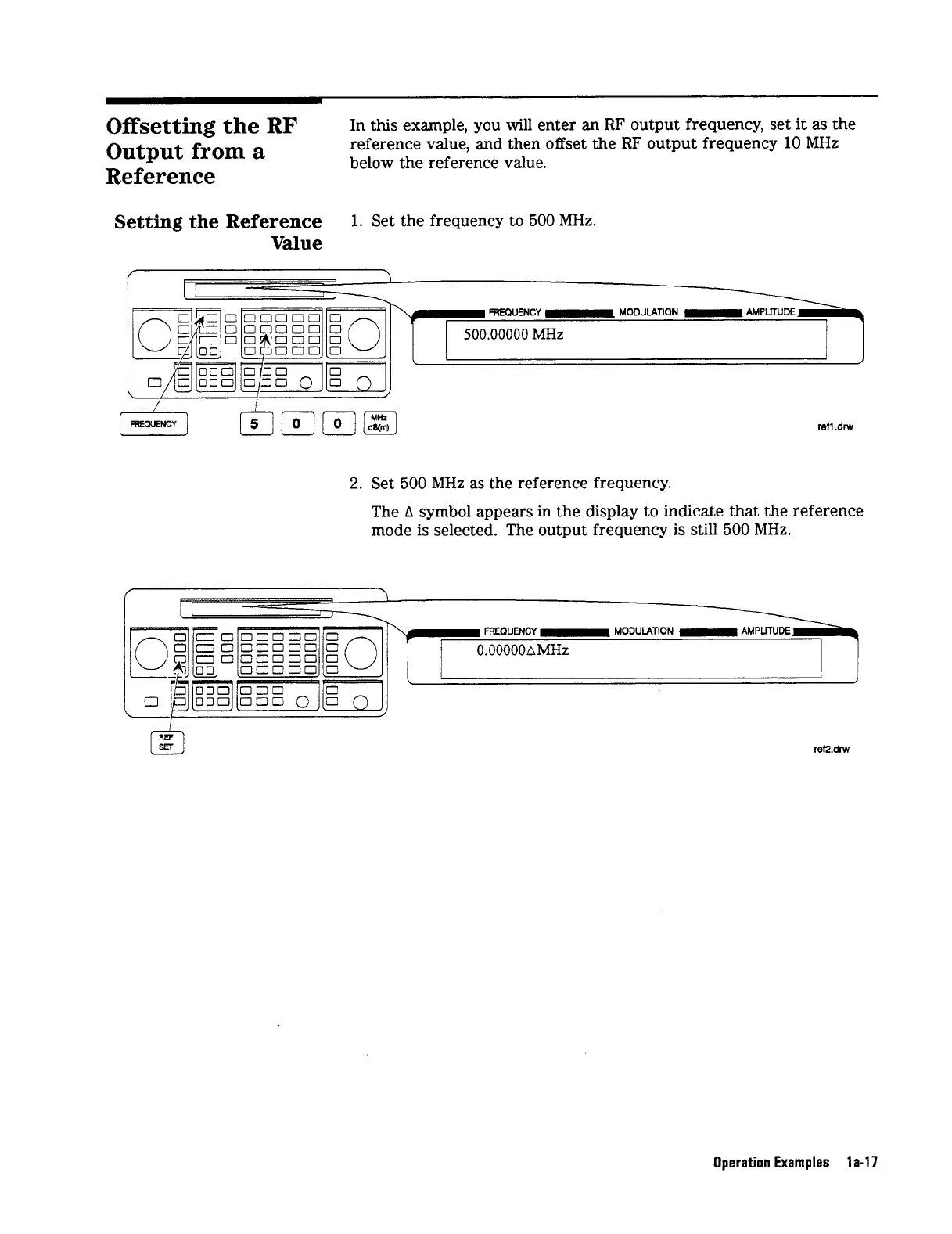

Offsetting the RF
In this example, you will enter an RF output frequency, set it as the
reference value,
and then offset the RF output frequency 10 MHz
below the reference value.
Output from a
Reference
Setting the Reference
Value
1. Set the frequency to 500 MHz.
q@
0
0 0000
I1
/ u-
1
500.00000 MHz
ref1 .dnv
2. Set 500 MHz as the reference frequency.
The
A symbol appears in the display to indicate that the reference
mode
is selected. The output frequency is still 500 MHz.
Operation Examples la-17
