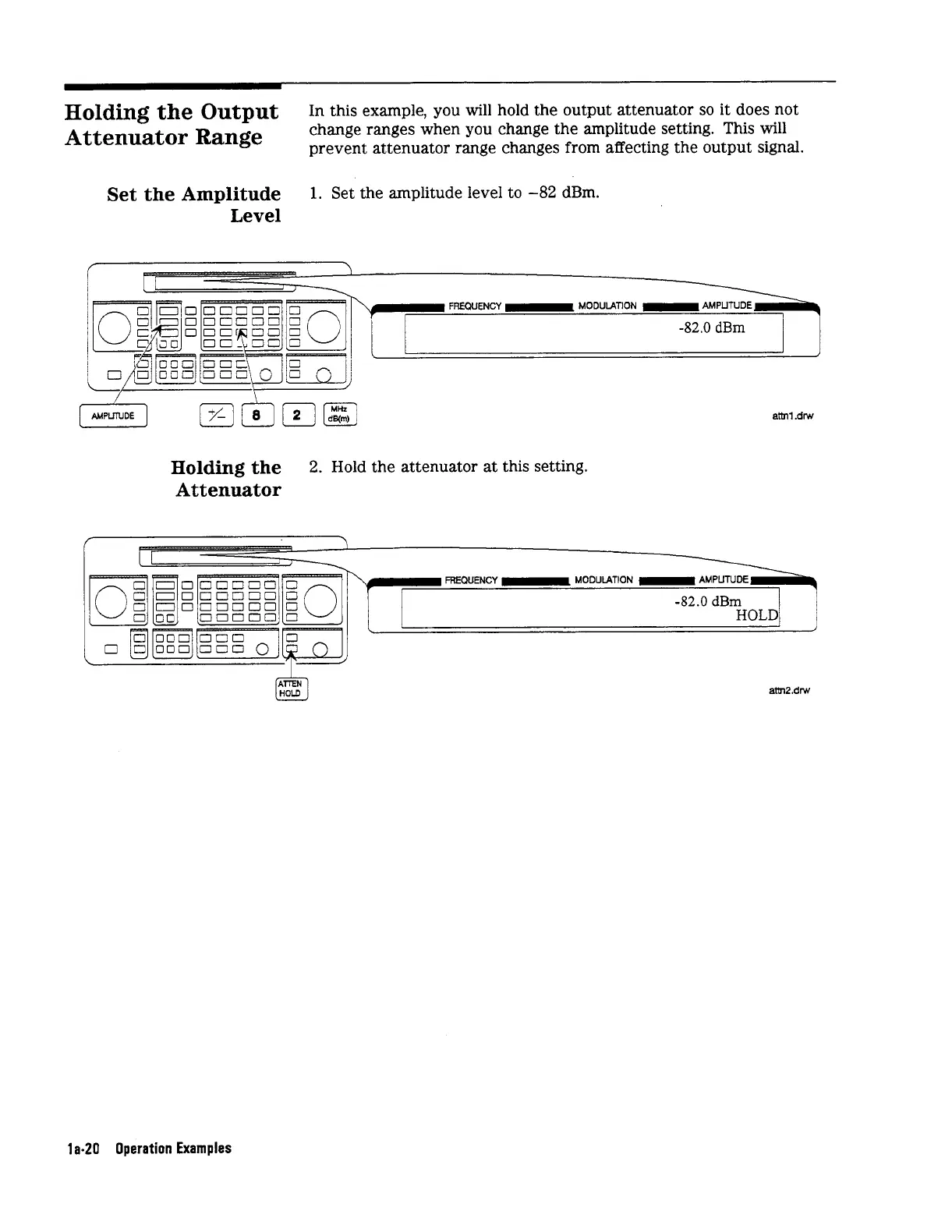

Holding
the
Output
Attenuator
Range
In
this
example,
you
will
hold
the output attenuator
so
it
does
not
change
ranges
when
you
change
the
amplitude
setting.
This
will
prevent attenuator
range
changes
from
affecting
the
output
signal.
I
Set
the
Amplitude
Level
1.
Set
the
amplitude
level
to
-82
dBm.
-82.0
dBm
am1
drw
Holding
the
Attenuator
2.
Hold
the
attenuator
at
this
setting.
\f
FREOUENCY
-
MODULATION
-
AMPLITUDE
-82.0
dBm
HOLD
\
J
la-20
Operation
Examples
37
