HP BladeSystem c7000 - Enclosure rear components

Component and LED identification 16

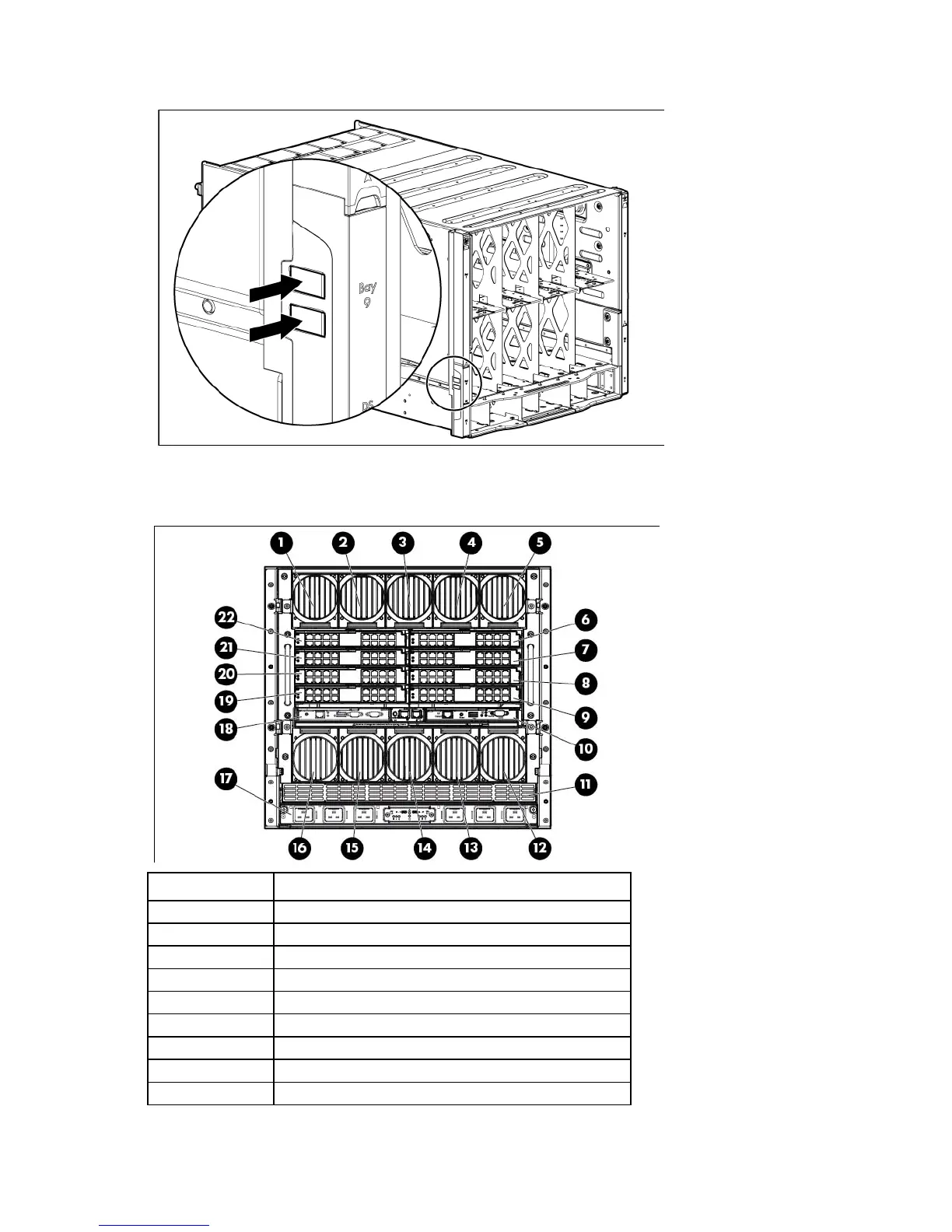

The following figure shows the location of the contacts on the c7000 enclosure that enable use of LDS.
Enclosure rear components
Item Description
1
Fan bay 1
2
Fan bay 2
3
Fan bay 3
4
Fan bay 4
5
Fan bay 5
6
Interconnect bay 2
7
Interconnect bay 4
8
Interconnect bay 6
9
Interconnect bay 8
