HP BladeSystem c7000 User Manual

HP BladeSystem Insight Display 69
10.

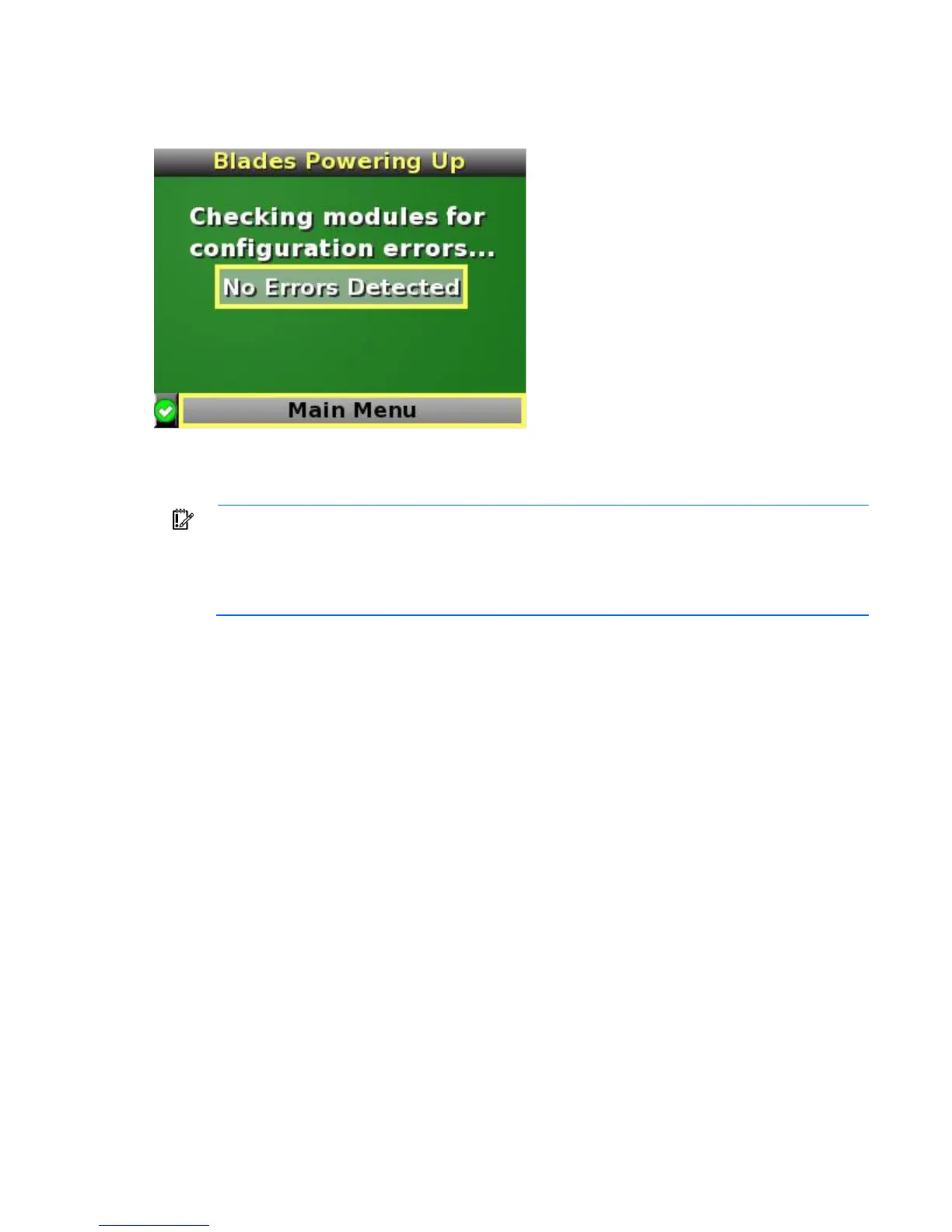

If no errors are detected, the rear enclosure UID turns off, and the Insight Display screen illuminates
green. Press the OK button to return to the Main Menu. Enclosure and blade hardware setup and
configuration is complete.
If errors are detected, the Insight Display screen illuminates amber, and the Health Summary screen
appears. For more information on troubleshooting configuration and installation errors, see Insight
Display errors (on page 80).
IMPORTANT:
If errors are detected, the Insight Display screen illuminates amber, and the Health
Summary screen displays. For more information on troubleshooting configuration errors, see
"Insight Display errors (on page 80)."
All configuration errors prevent the operation of the enclosure and should be corrected
immediately.
11. Open a browser and connect to the active Onboard Administrator module using the Onboard
Administrator IP address that was configured during the Insight Display installation wizard process.
12. Enter the user name and password from the tag supplied with the Onboard Administrator module to
access the remote Onboard Administrator web interface and complete the Onboard Administrator first
time installation wizard.
Navigating the Insight Display
Navigate through the menus and selections by using the arrow buttons on the Insight Display panel ("HP
BladeSystem Insight Display components" on page 15). Use the arrow buttons to move the selection box to
a menu item, and then press OK to go to selected screen.

HP BladeSystem c7000 Specifications

General

Form Factor	10U
Number of Bays	16
Redundant Power	Yes
Redundant Fans	Yes
Maximum Blade Servers	16 half-height or 8 full-height
Operating Temperature	10° to 35°C (50° to 95°F)
Power Supplies	Up to 6
Cooling Fans	10
Management	Onboard Administrator
Interconnect Modules	Up to 8
Networking Options	Ethernet, Fibre Channel, InfiniBand
Compatibility	HP ProLiant and Integrity server blades
Relative Humidity	10% to 90% (non-condensing)
