Installation 55
Removing interconnect bay dividers
The enclosure ships with interconnect bay dividers installed. The interconnect bay dividers must be removed
before installing double-wide interconnect modules. To remove an interconnect bay divider, press the release
tab, and pull the interconnect bay divider out of the enclosure.
Installing interconnect bay dividers
The enclosure ships with interconnect bay dividers installed. The interconnect bay dividers must be installed
to use single-wide interconnect modules.

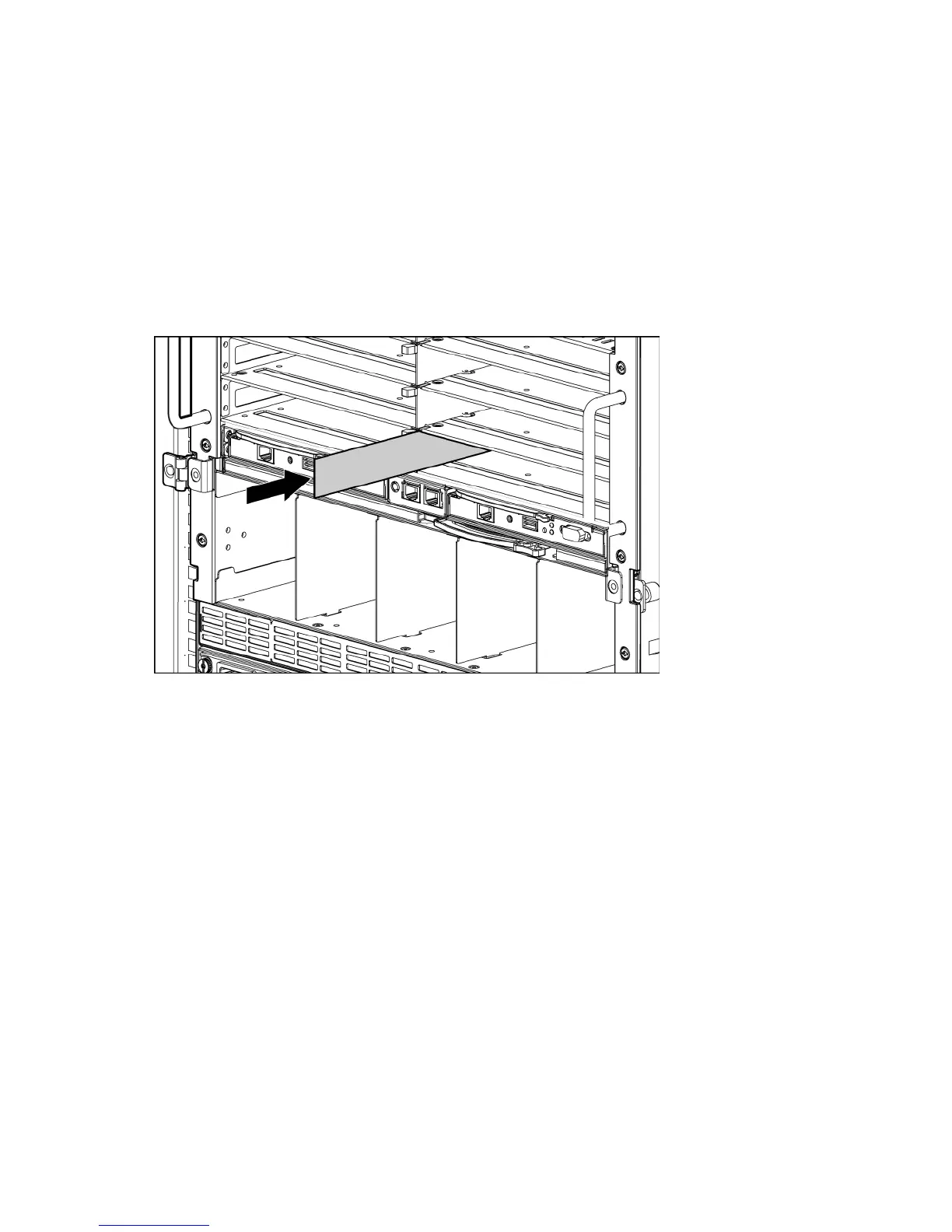

To reinstall an interconnect bay divider, align the interconnect bay divider with the rail, and slide the divider
into the enclosure until it locks into place.
