HP BladeSystem c7000 User Manual

HP BladeSystem Insight Display 75
To view the ports used by a specific blade, select Port Info and press the OK button.
On the following full-height blade, there are four embedded NICs. There are two interconnect modules
located in interconnect bays 1 and 5, shown with bright green highlights. The other interconnect bays are
empty. The four embedded NICs are connected to particular port numbers on the interconnect modules.

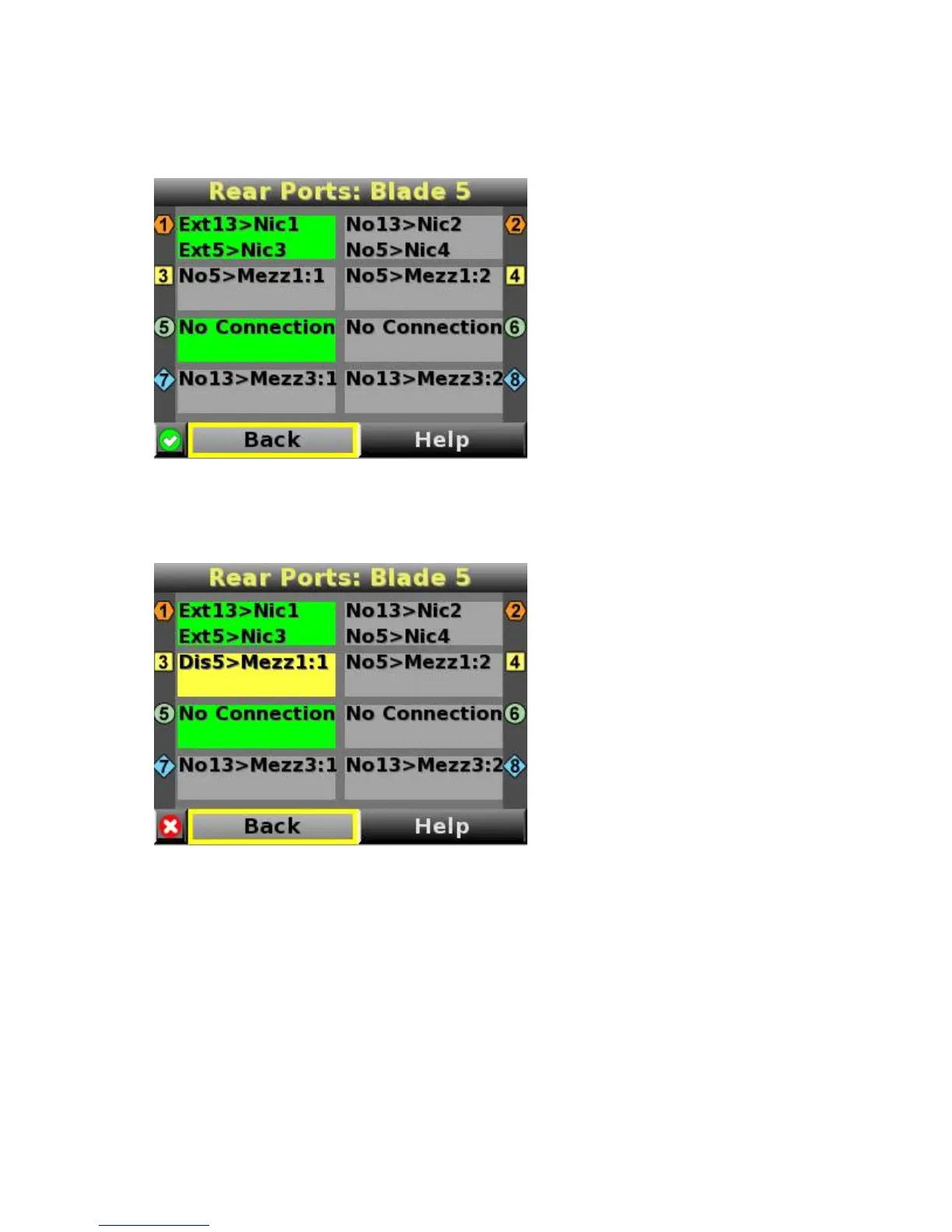

The following Port Info screen shows a configuration error. There is a mismatch between the mezzanine card
and interconnect module. Interconnect bay 3 contains a Fibre Channel interconnect module. Mezzanine 1
on the blade is a gigabit Ethernet which does not match the technology of the interconnect module. Therefore
an error displays.
Turn Enclosure UID On/Off screen
The main menu option displays "Turn Enclosure UID Off" when the enclosure UID is active, and displays
"Turn Enclosure UID on" when the enclosure UID is off.
