Installation 28

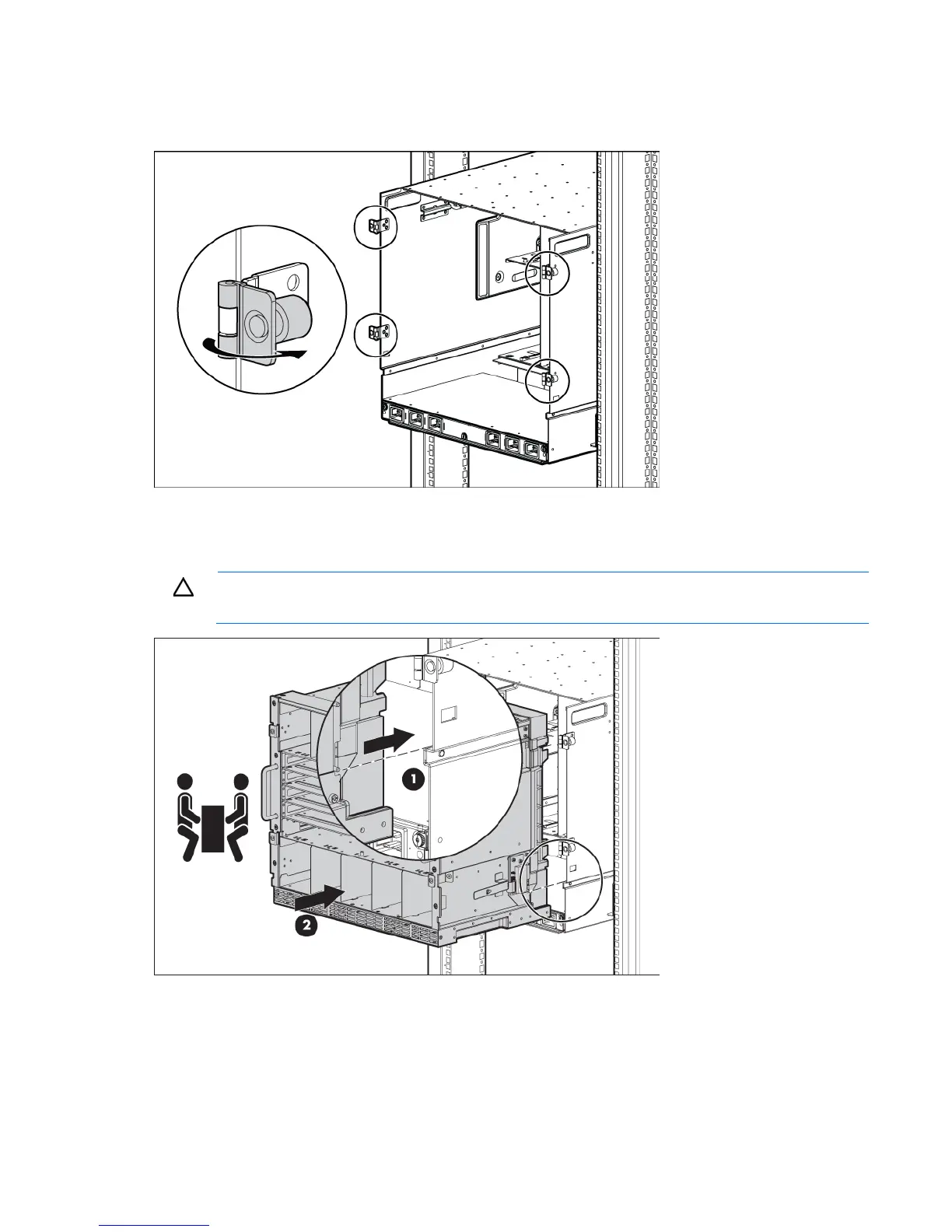

Installing the rear cage into the enclosure
1. Open all hinges completely.
2. Position the rear cage at the rear of the enclosure, and align the rear cage guiding fins with the guiding
groove in the rack rails.
3. Slide the rear cage fully into the enclosure.
CAUTION: Do not touch or bump rear cage connector pins when installing the rear cage into the
enclosure.
