Installation 46
3.

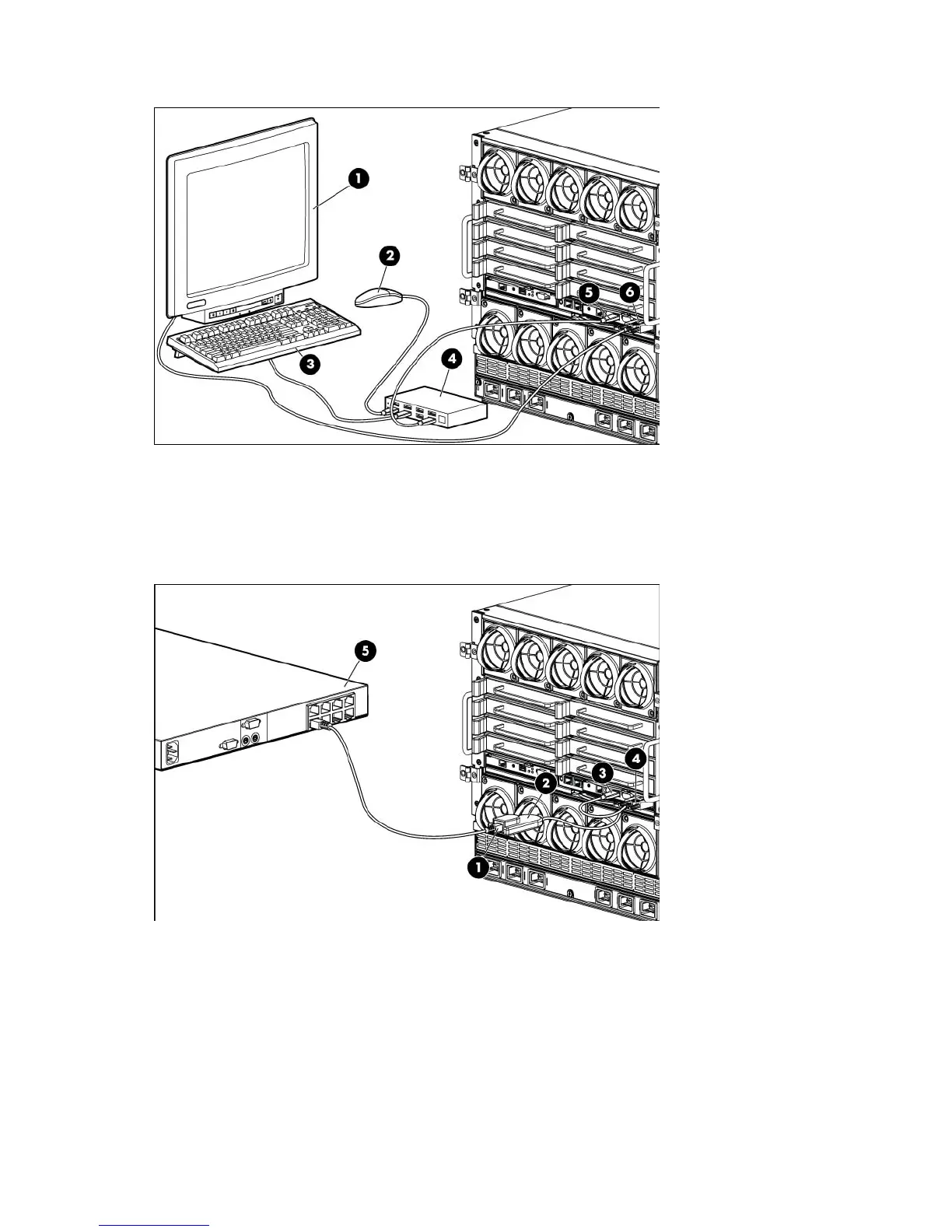

Connect a USB mouse (2) and keyboard (3) to the USB hub (4).
To connect the HP Onboard Administrator with KVM to an HP Server Console Switch or an HP IP Console
Switch:
1. Connect the KVM interface adapter (2) to the VGA connector (4) and the USB connector (3) on the HP
Onboard Administrator with KVM.
2. Connect a CAT5 cable (1) to the KVM interface adapter (2) and an optional HP Console Switch (5).
Installing interconnect modules
There are eight single-wide interconnect bays in the enclosure. Interconnect bays 1 and 2 are reserved for
Ethernet switches. Installation into the remaining interconnect bays depends on the type of mezzanine card
installed in the server and in which mezzanine slot the mezzanine card was installed.
