Service Reference Guide, dc7100 361288-003 6ā29
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis
6.15 Power Switch Assembly
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the computer access panel (Section 6.5).
3. Disconnect the power switch/LED cable from the system board.

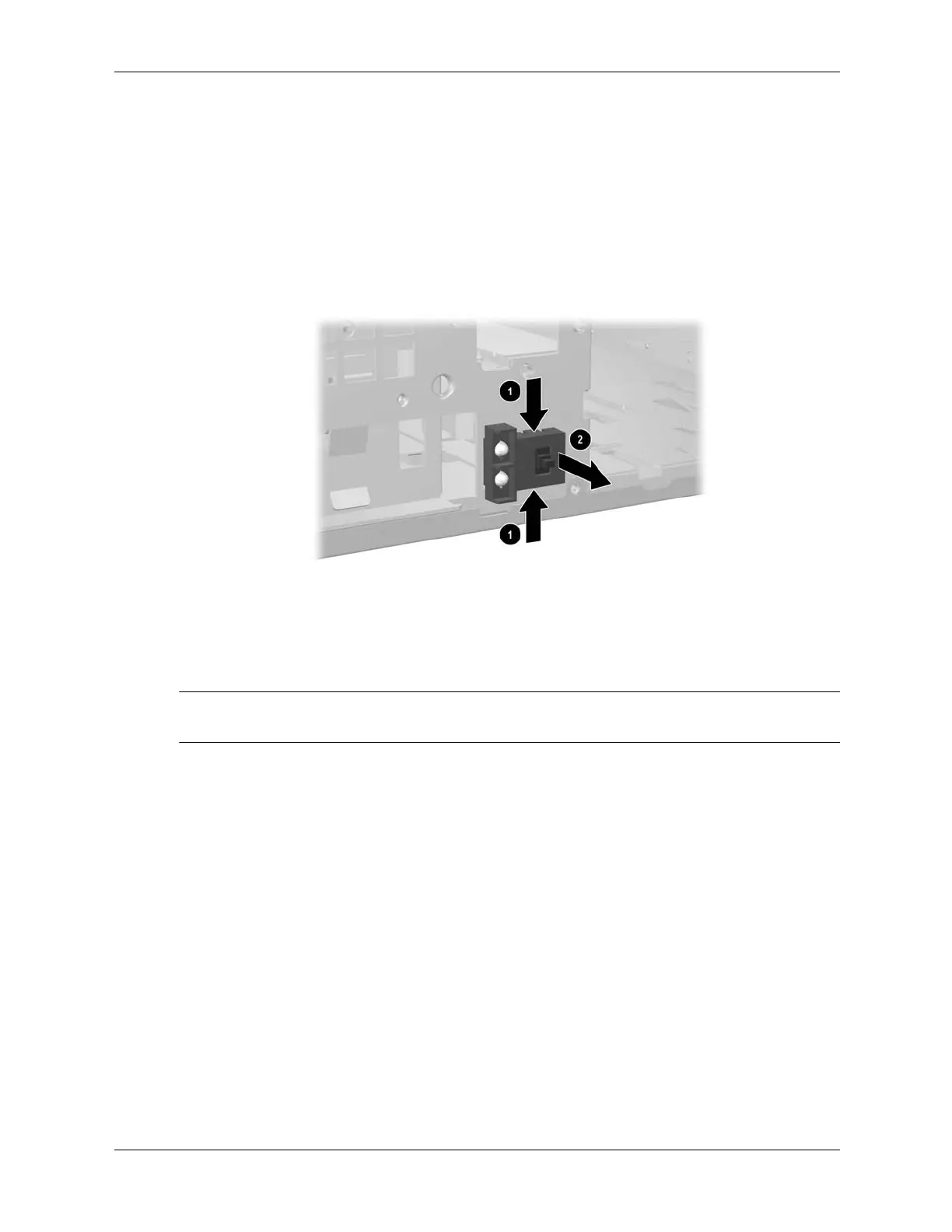

4. Squeeze the switch holder retaining clips together at the front of the chassis 1 and pull the
switch assembly out of the chassis 2.
To install the power switch assembly, reverse the removal procedure.
ā
When installing the power switch cable it may be necessary to disconnect a data cabe from one
of the drives to make it easier to grab the free end of the cable.
