Service Reference Guide, dc7100 361288-003 8–17
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis
8.13 Hood Sensor
1. Prepare the computer for disassembly (Section 8.1).
2. Remove the computer access panel (Section 8.3).
3. Remove the expansion card cage (Section 8.11).

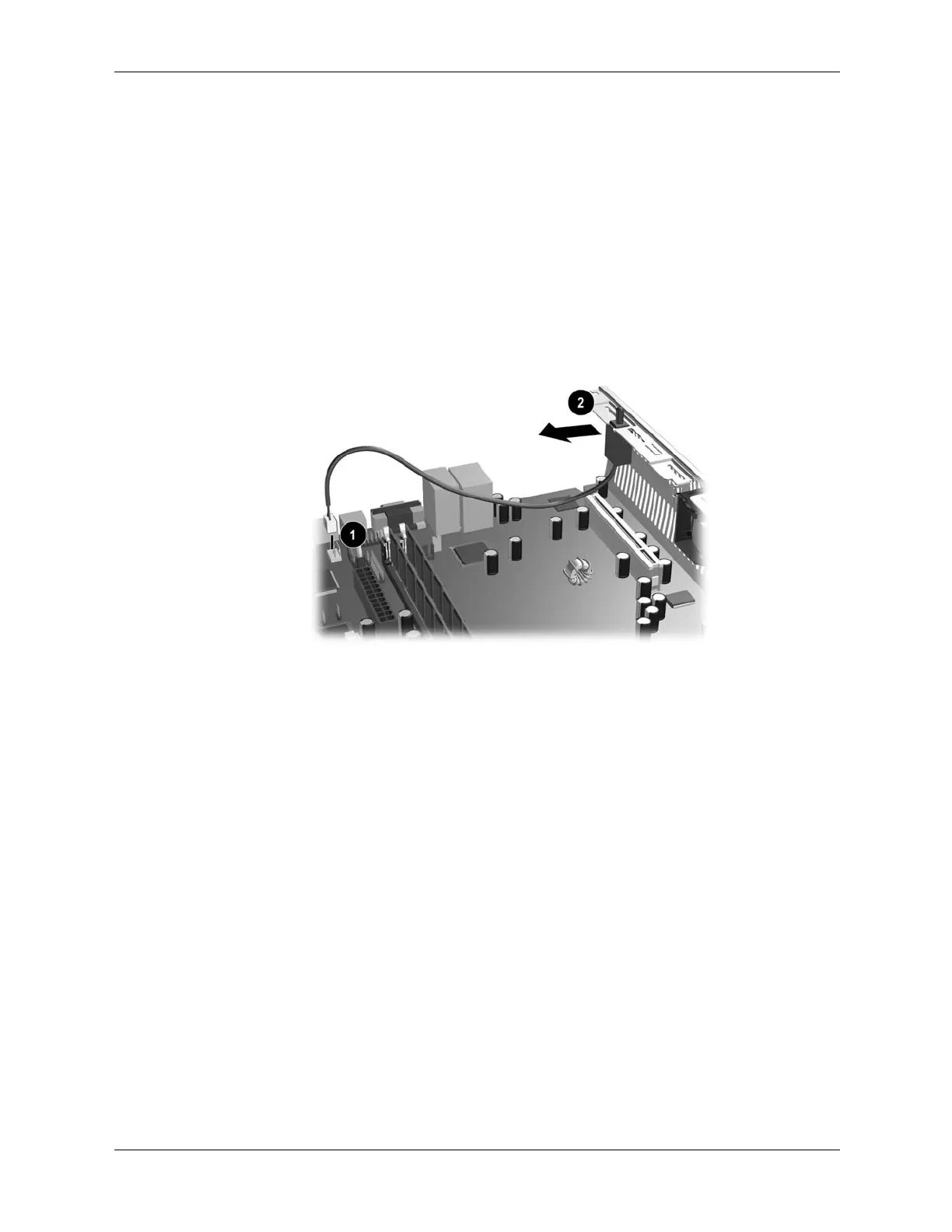

4. Disconnect the cable from the system board 1 and then slide the hood sensor out of the slot
in the chassis 2.
To install the hood sensor, reverse the removal procedures.
