Service Reference Guide, dc7100 361288-003 7–21
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.9.3 PCI Express Expansion Card
To remove a PCI Express expansion card:
1. If you have locked the Smart Cover Lock, restart the computer and enter Computer Setup to
unlock the lock.
2. Turn off the computer properly through the operating system, then turn off any external
devices.
3. Disconnect the power cord from the power outlet and disconnect any external devices.
4. Remove the computer cover. Refer to Section 7.5, “Computer Cover”.
5. Release the slot cover retention latch on the back of the computer that secures the PCI slot
covers by lifting the green tab on the latch and rotating the latch to the open position.

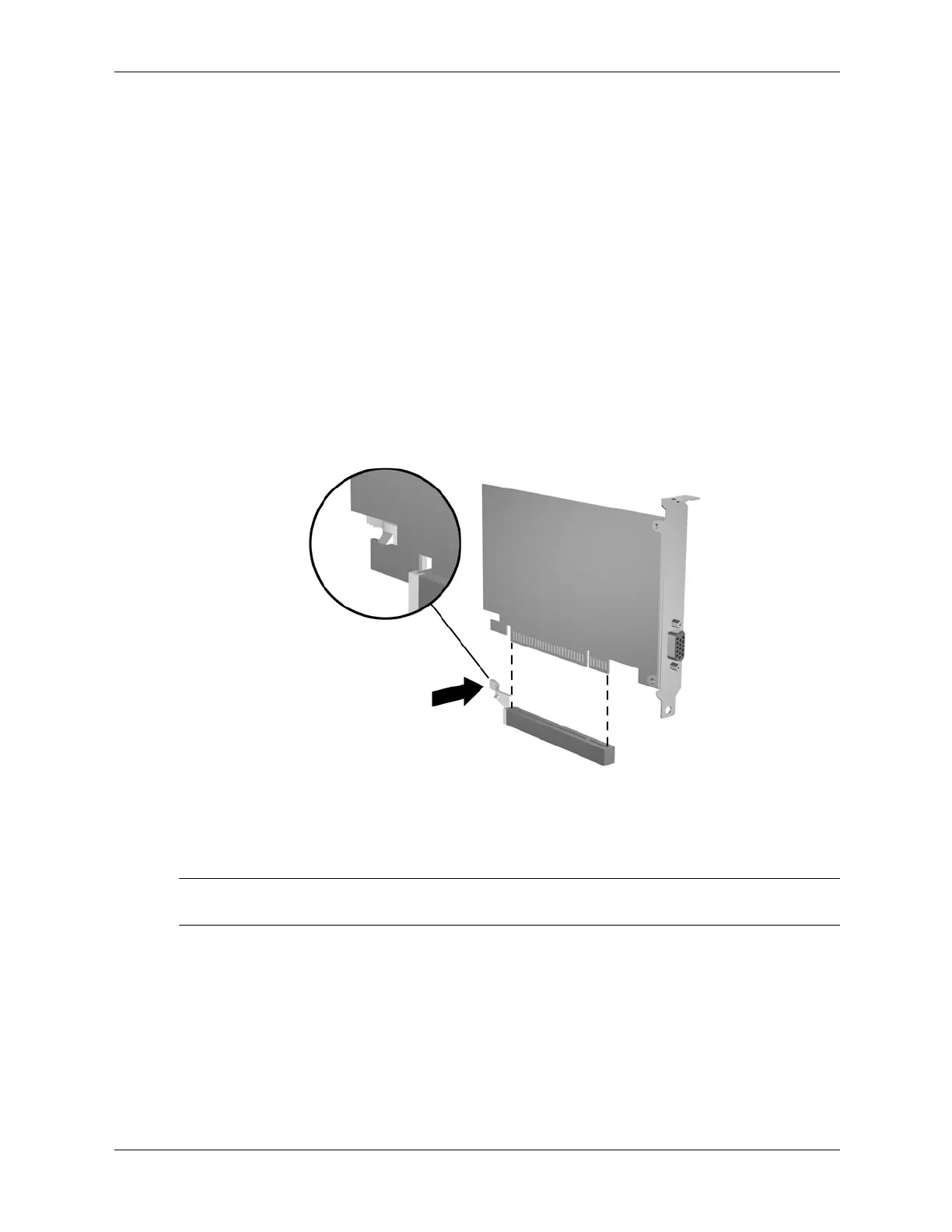

6. Pull the retention arm on the back of the PCI Express expansion socket away from the card
(on x16 card socket only) and carefully rock the card back and forth until the connectors pull
free from the socket. Pull the expansion card straight up from the socket then away from the
inside of the chassis. Be sure not to scrape the card against the other components.
7. If you are not installing a new expansion card, install an expansion slot cover to close the
open slot.
8. Rotate the slot cover retention latch back in place to secure the expansion cards and
expansion slot.
Ä
CAUTION: All expansion card slots on the rear of the computer must contain either an expansion card
or slot cover for proper cooling of internal components during operation.
