Service Reference Guide, dc7100 361288-003 8–5
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis
8.3 Computer Access Panel
1. Prepare the computer for disassembly (Section 8.1).
Ä
CAUTION: Before removing the computer access panel, ensure that the computer is turned off and that
the power cord is disconnected from the electrical outlet.
2. Lay the computer down so the rubber feet rest on a solid surface.

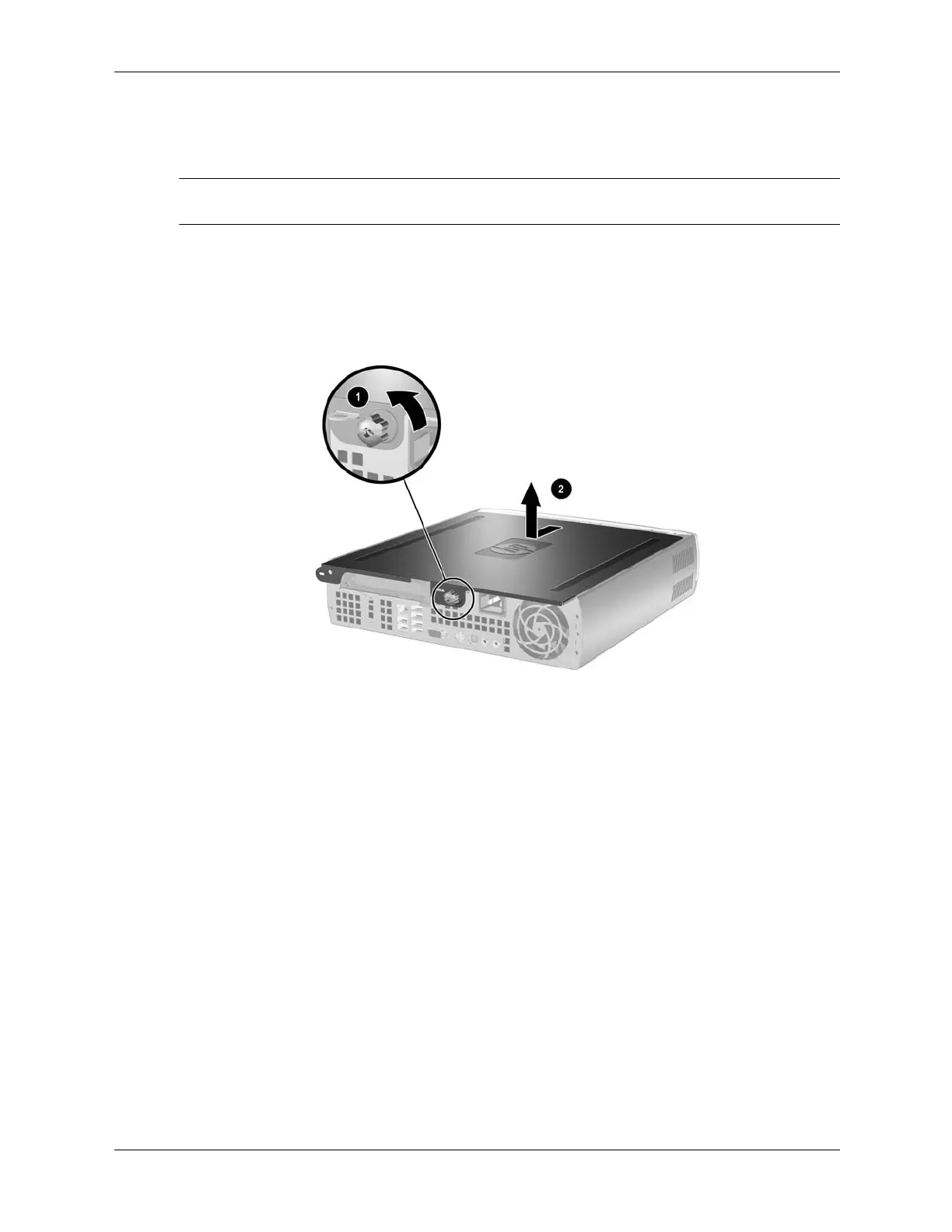

3. Loosen the captive thumbscrew 1 that secures the access panel to the computer chassis.
4. Slide the top access panel back about 1.3 cm, (1/2 inch), then lift it off the unit 2.
To install the access panel, reverse the removal procedure.
