6–6 361288-003 Service Reference Guide, dc7100
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis
6.5 Computer Access Panel
1. Prepare the computer for disassembly (Section 6.1).
Ä
CAUTION: Before removing the computer access panel, ensure that the computer is turned off and that
the power cord is disconnected from the electrical outlet.

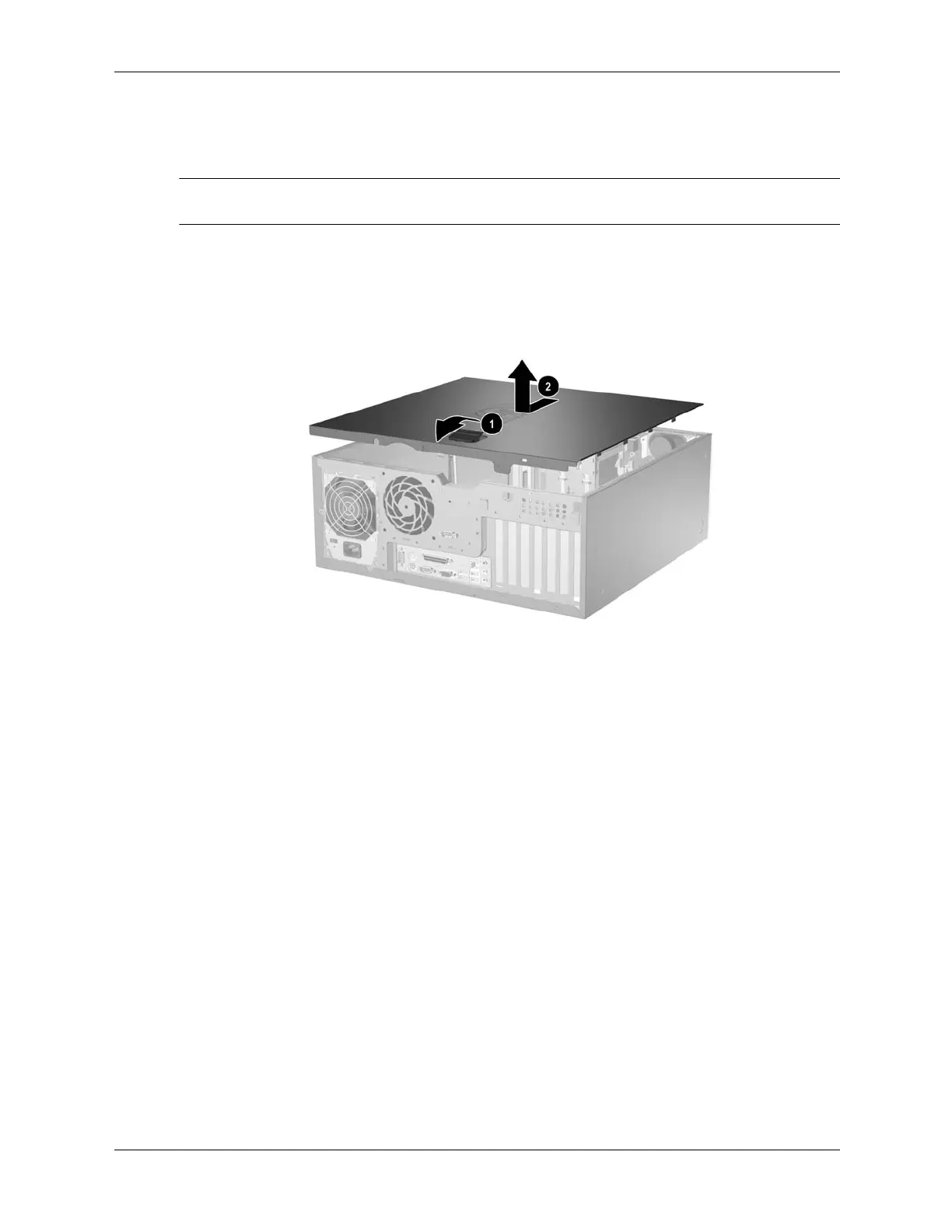

2. Lift up on the access panel handle 1, slide the access panel back about 1 inch (2.5 cm), then
lift it off the unit 2.
To install the computer cover, reverse the removal procedure.
