7–4 361288-003 Service Reference Guide, dc7100
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.3 Hood Sensor
1. Prepare the computer for disassembly.
2. Remove the computer cover.
3. Raise the power supply to its full upright position.
4. Disconnect the hood sensor cable from the system board.

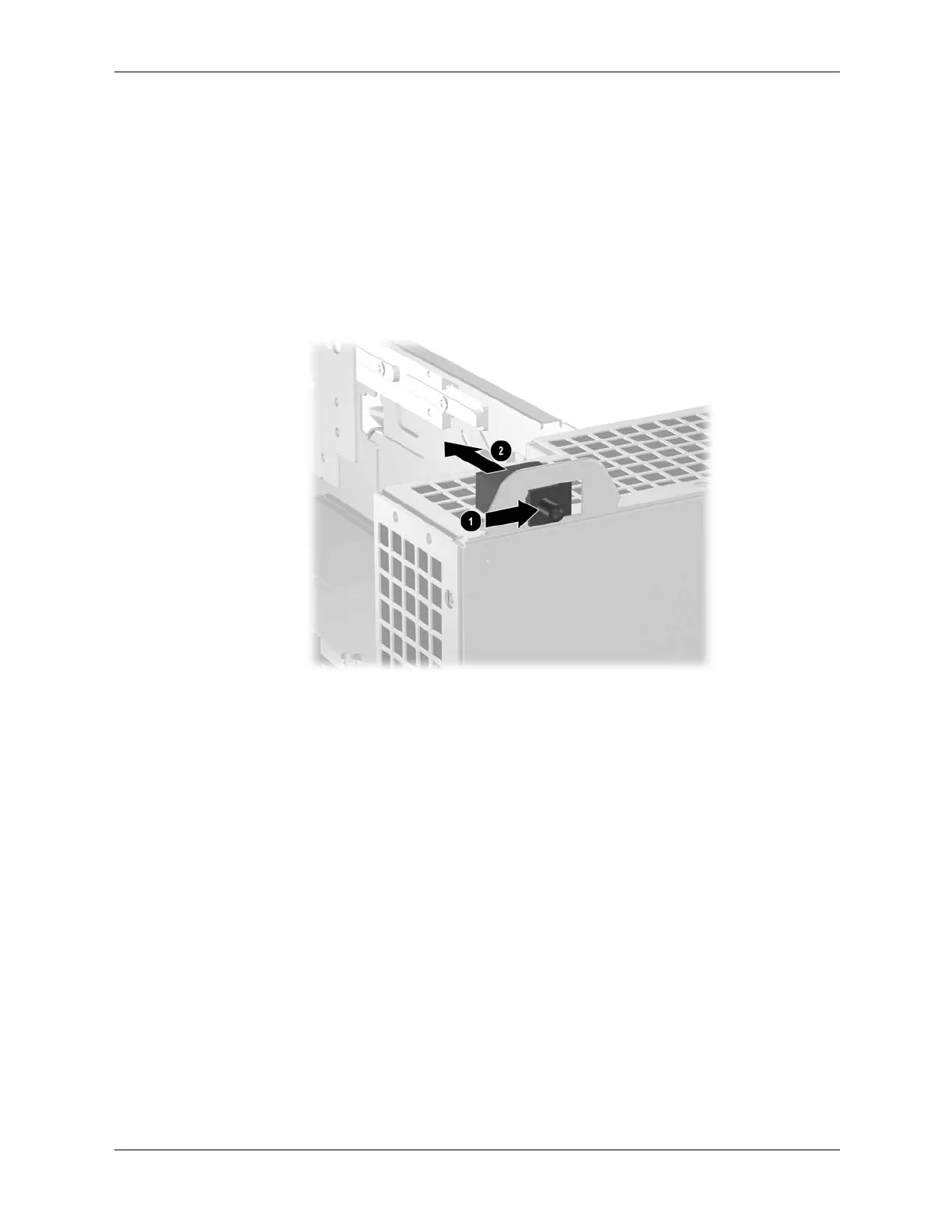

5. Slide the hood sensor switch mounted on the power supply towards the outside of the
computer 1 and lower it through the slot 2.
To install the hood sensor, reverse the removal procedure.
