HP Compaq dc7100 DT User Manual

6–30 361288-003 Service Reference Guide, dc7100
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis
6.16 System Board
1. Prepare the computer for disassembly (Section 6.1).
2. Remove the computer access panel (Section 6.5).
3. Remove all PCI expansion boards (Section 6.10).
4. Remove the x16 PCI Express graphics card (Section 6.10).
5. Disconnect all cables connected to the system board, noting their location for reinstallation.

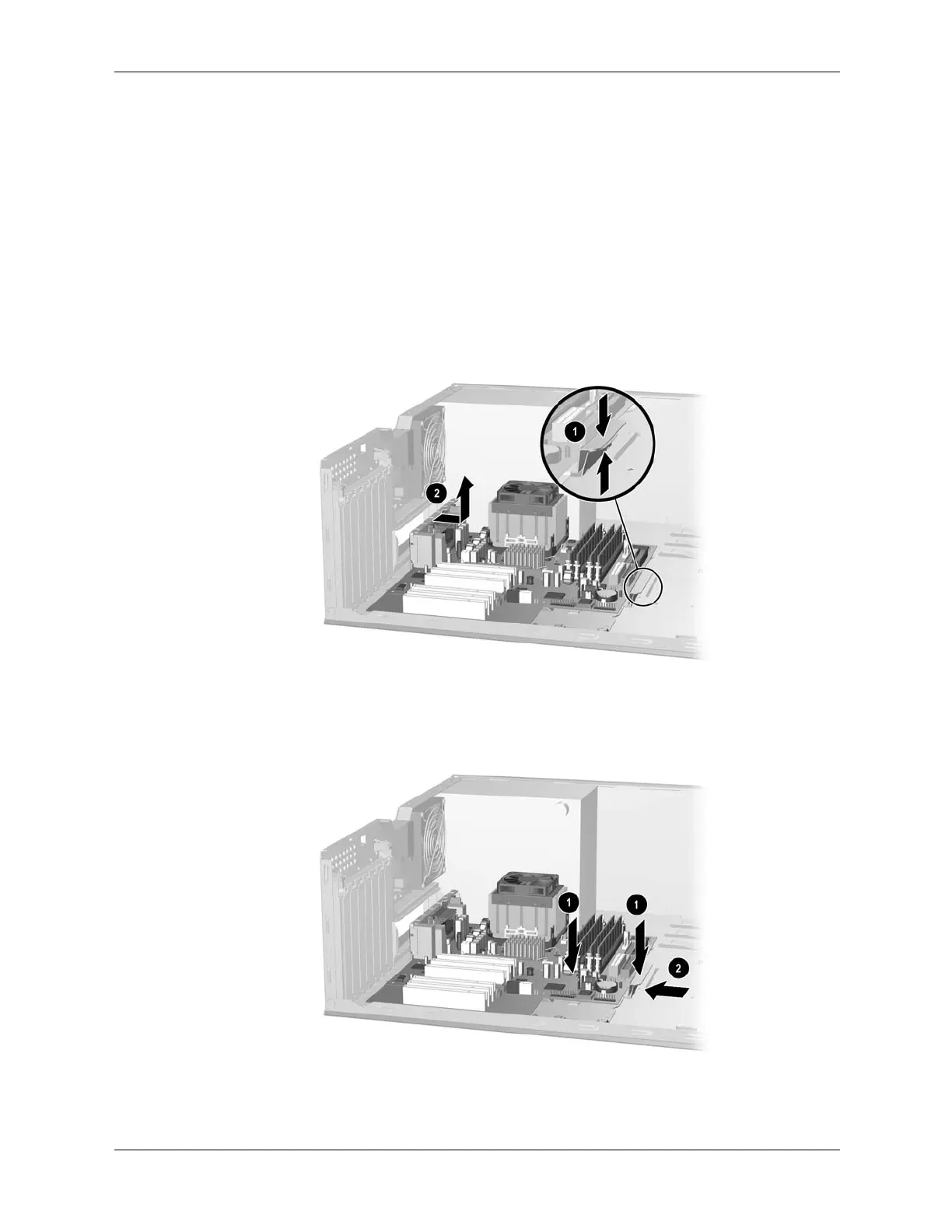

6. Compress the system board tray handle 1 to release the latch and slide the system board tray
towards the front of the computer 2 to free it from the back of the chassis.
To install the system board with its tray, press down on the board to ensure its latching 1 and
then, push the board into its locked position 2.

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
