8–24 361288-003 Service Reference Guide, dc7100
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis
8.18 Processor
1. Prepare the computer for disassembly (Section 8.1).
2. Remove the computer access panel (Section 8.3).
3. Remove any MultiBay device in the drive cage (Section 8.4).
4. Remove the MultiBay riser card (Section 8.5).
5. Remove the front panel assembly (Section 8.6).
6. Remove the heatsink (Section 8.17).

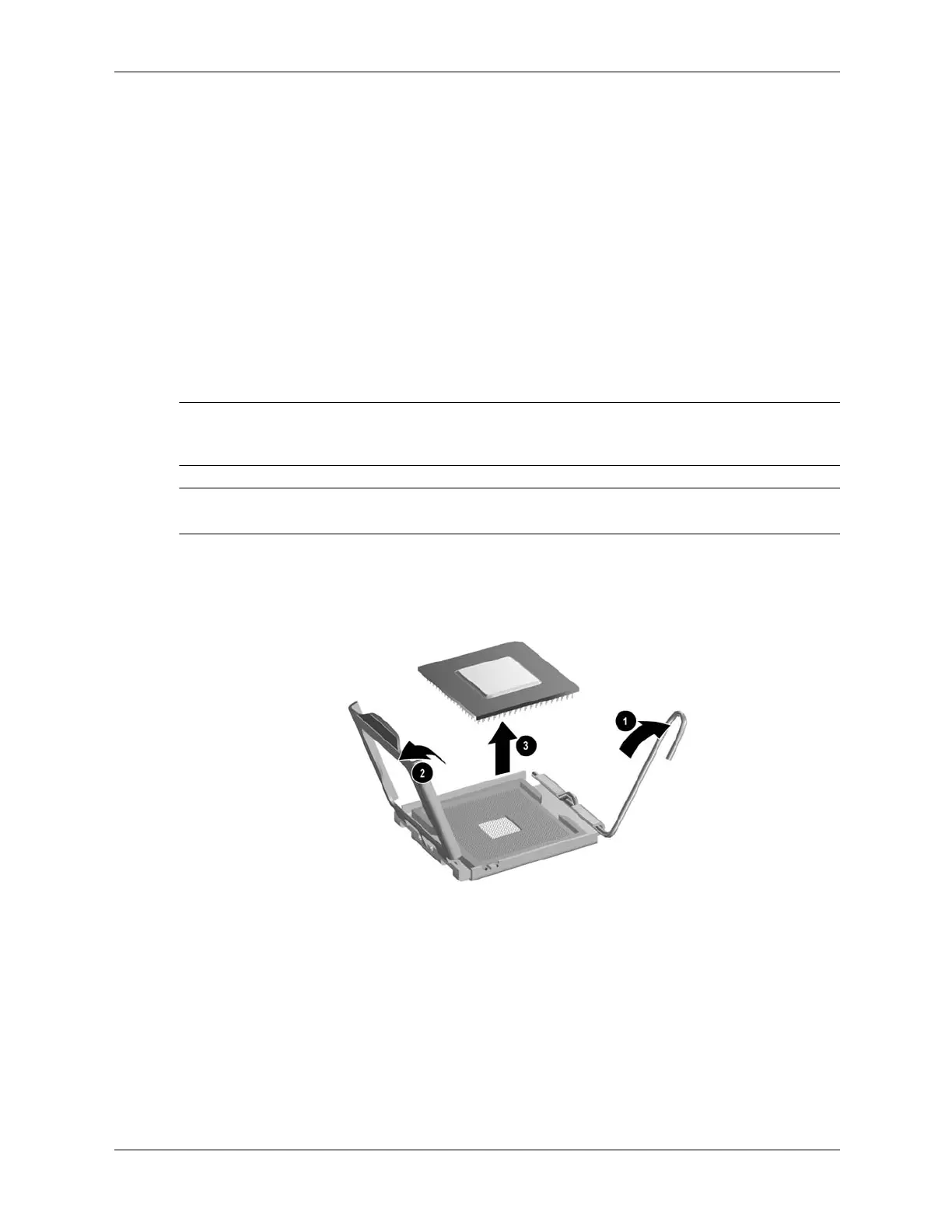

7. Rotate the processor locking lever to its full open position 1.
8. Raise and rotate the microprocessor retainer to its fully open position 2.
9. Carefully lift the processor from the socket 3.
Ä
CAUTION: Do NOT handle the pins in the processor socket. These pins are very fragile and handling
them could cause irreparable damage. Once pins are damaged it may be necessary to replace the
system board.
Ä
CAUTION: The heatsink must be installed within 24 hours of installing the processor to prevent damage
to the processor’s solder connections.
To install a new processor:
1. Place the processor in its socket and close the retainer.
2. Secure the locking lever.
If reusing the existing heatsink, go to step 3.
If using a new heatsink, go to step 5.
3. If reusing the existing heatsink clean bottom of the heatsink and apply the thermal grease
provided in the spares kit to the top of the processor.
