8–14 361288-003 Service Reference Guide, dc7100
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis
8.11 Expansion Card Cage
1. Prepare the computer for disassembly (Section 8.1).
2. Remove the computer access panel (Section 8.3).

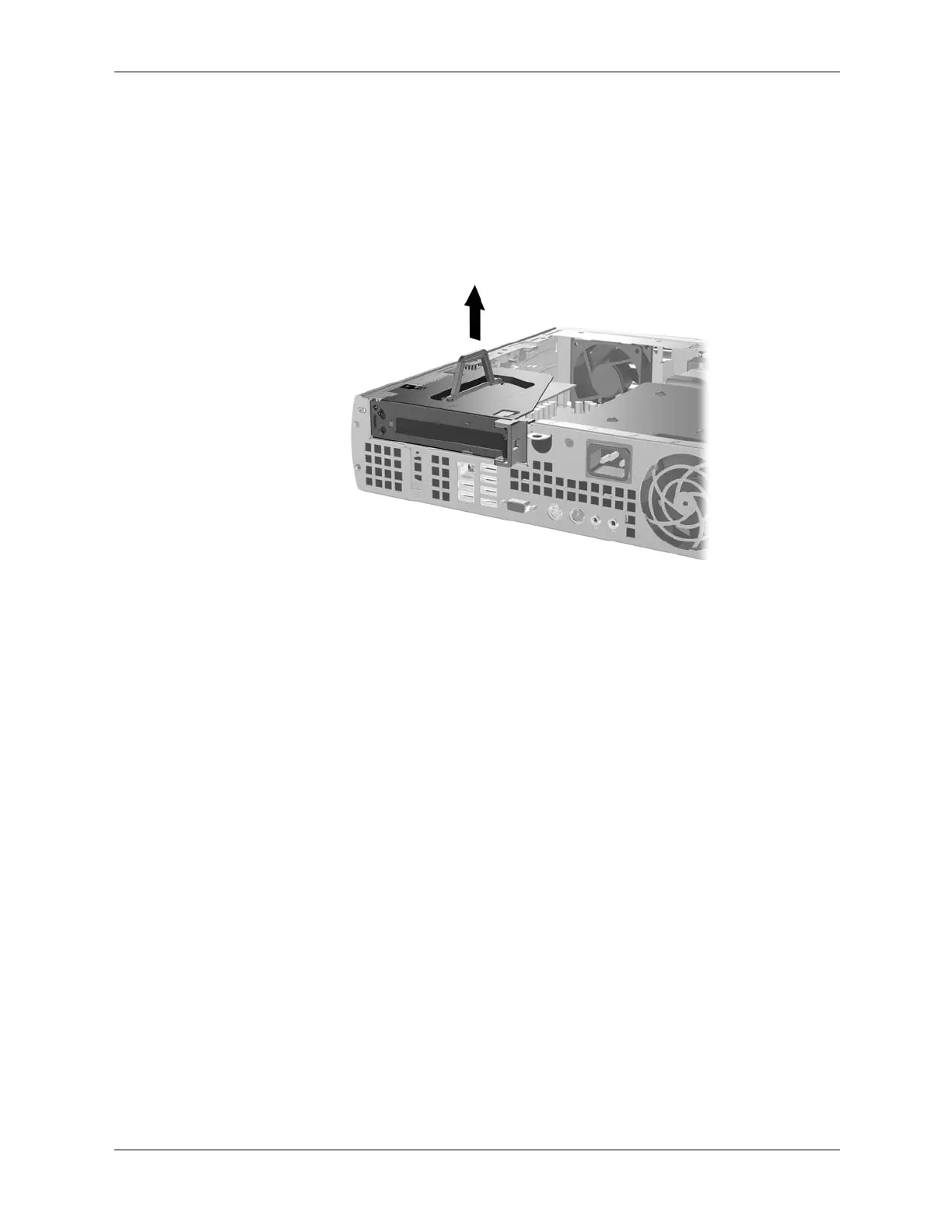

3. Lift the green bail handle on the expansion card cage and lift straight up.
To install the cage, align the cage in the guides on the chassis and press it firmly into place.
