Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.10 .3 Riser C a rd
1. If you have locked the Smart Cover Lock, use Computer Setup to unlock the lock (Section
7.2, “Unlocking the Smart Cover Lock”).
2. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).
3. Remove the computer access panel (Section 7.5, “Computer Cover”).
4. Remove the expansion card cage (Section 7.10.1, “Expansion Card Cage”).

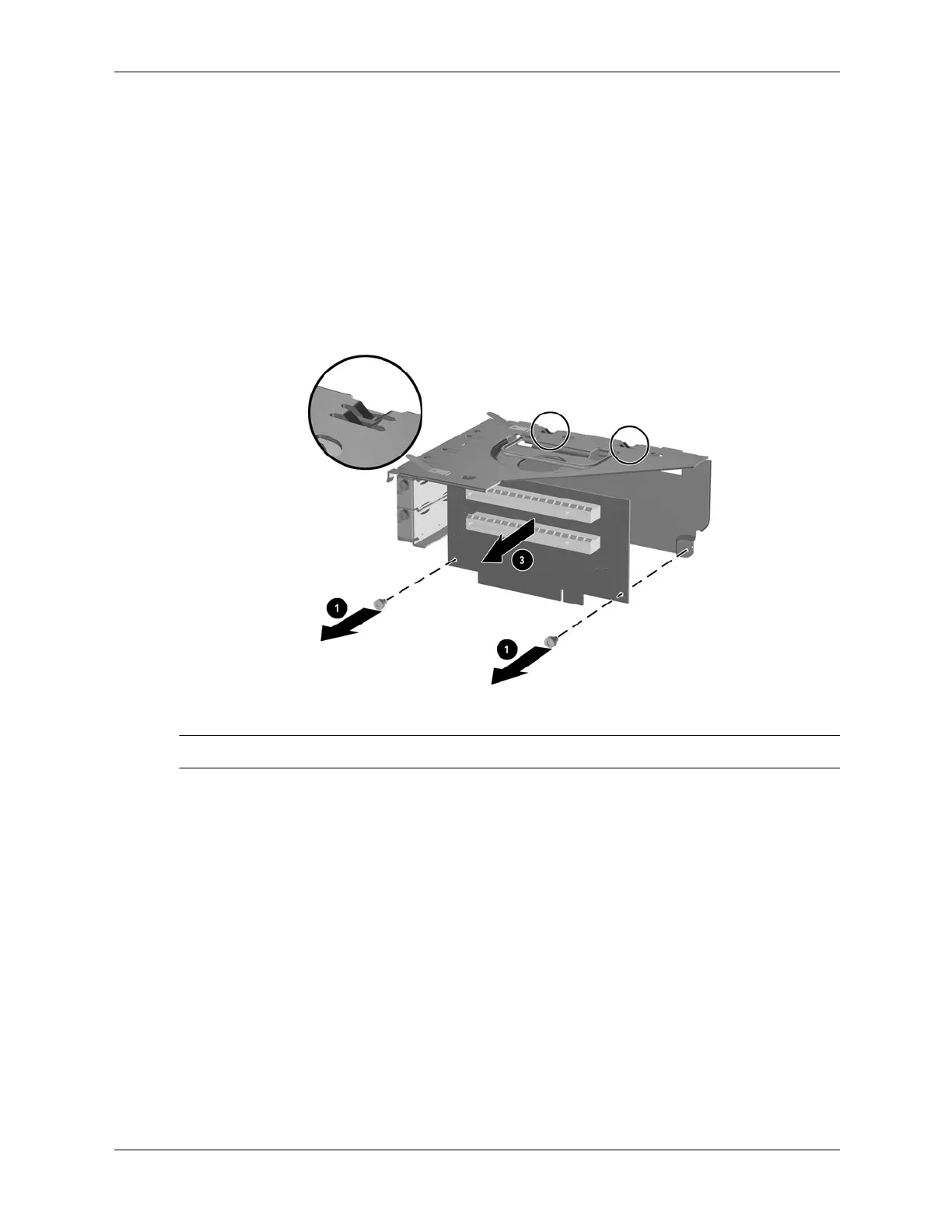

5. Remove the two screws that secure the riser card to the expansion card cage 1, then remove
the card 2.
To install the riser card, reverse the removal procedure.
✎
The riser card is not spared separately at the time this document was released.
