HP Compaq dc7100 DT User Manual

8–8 361288-003 Service Reference Guide, dc7100
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis
8.6 Front Panel Assembly
1. Prepare the computer for disassembly (Section 8.1).
2. Remove the computer access panel (Section 8.3).
3. Remove any MultiBay device from the drive cage (Section 8.4).
4. Remove the MultiBay riser card (Section 8.5).

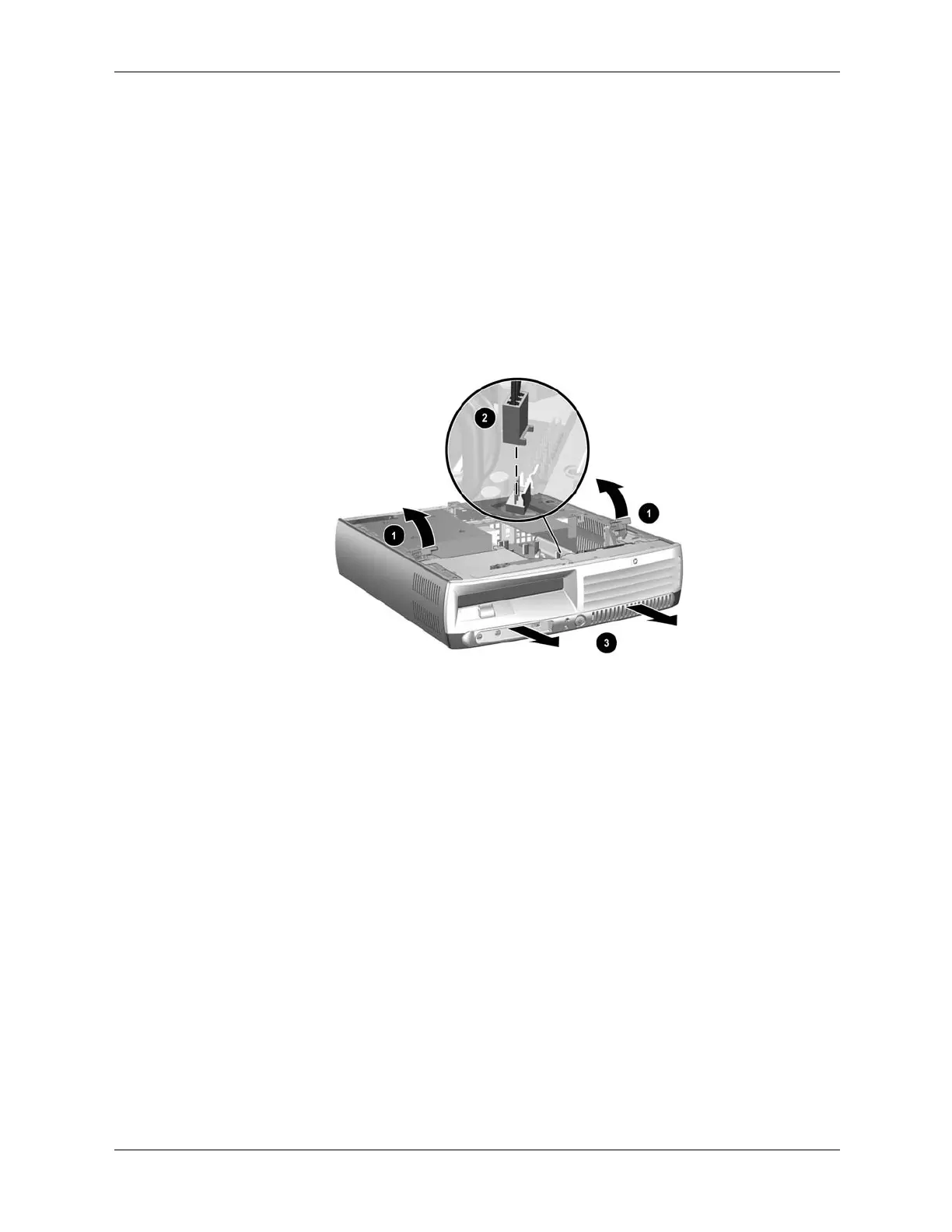

5. Lift up on the two green locking levers release tabs on the right side of the bezel 1. This will
unlatch the front panel assembly and push it about 1.3 cm (1/2 inch) out of the chassis.
6. Disconnect the fan cable from the system board 2 and remove the panel assembly 3 by
pulling it straight out of the chassis.
To reinstall the front panel assembly, reverse the removal procedure.
