Service Reference Guide, dc7100 361288-003 8–31
Removal and Replacement Procedures - Ultra-Slim Desktop (USDT) Chassis
8.21 Speaker
1. Prepare the computer for disassembly (Section 8.1).
2. Remove the computer access panel (Section 8.3).
3. Remove the expansion card cage (Section 8.11).
4. Disconnect the speaker cable from the system board.

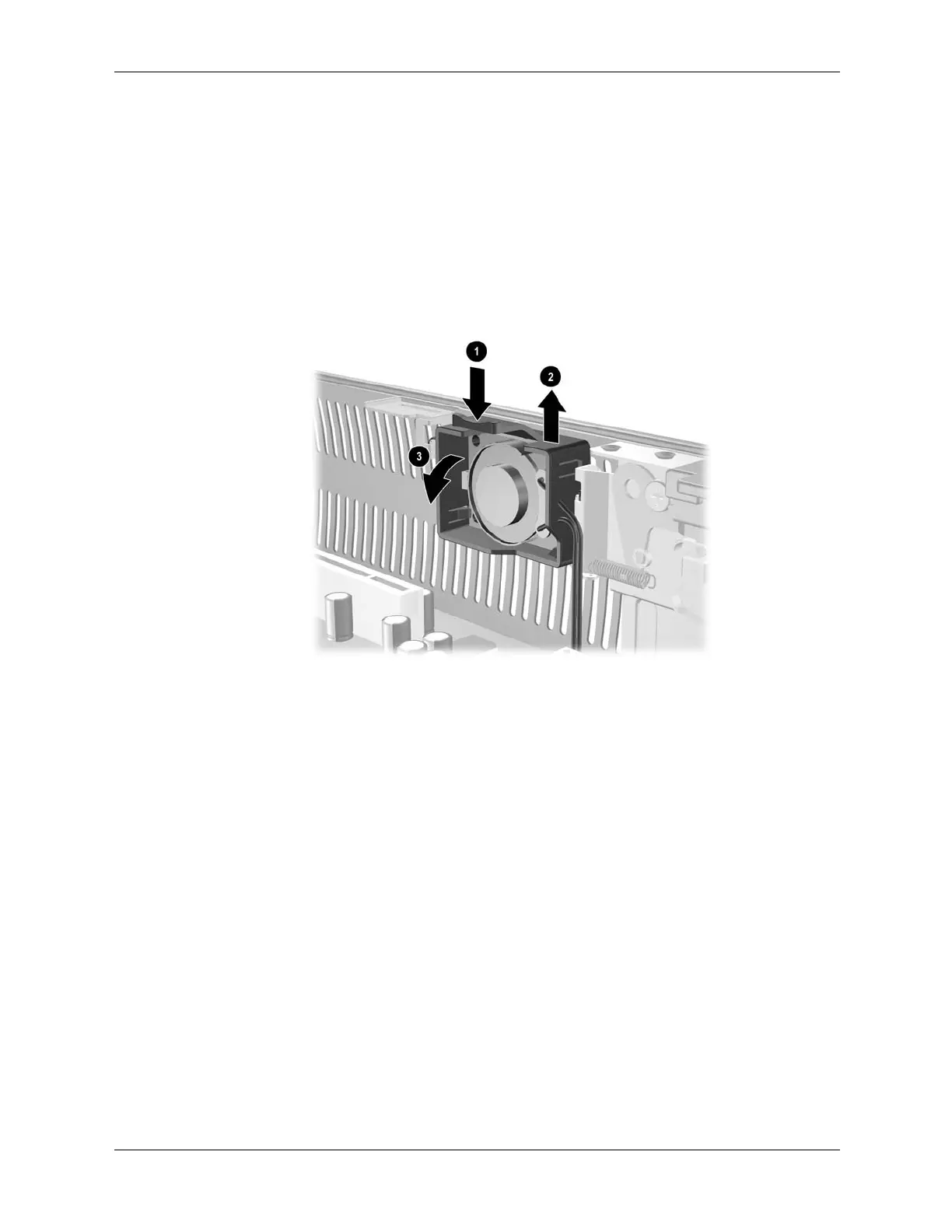

5. Grasp the bottom of the speaker while at the same time pressing down on the tab on its top
then, slide the speaker towards the center of the chassis to release it.
To install the speaker, reverse the removal procedure.
