HP Compaq dc7100 DT User Manual

Service Reference Guide, dc7100 361288-003 7–39
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.14 Power Switch Assembly
1. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).
2. Remove the computer cover (Section 7.5, “Computer Cover”).
3. Disconnect the power switch/LED cable from the system board.

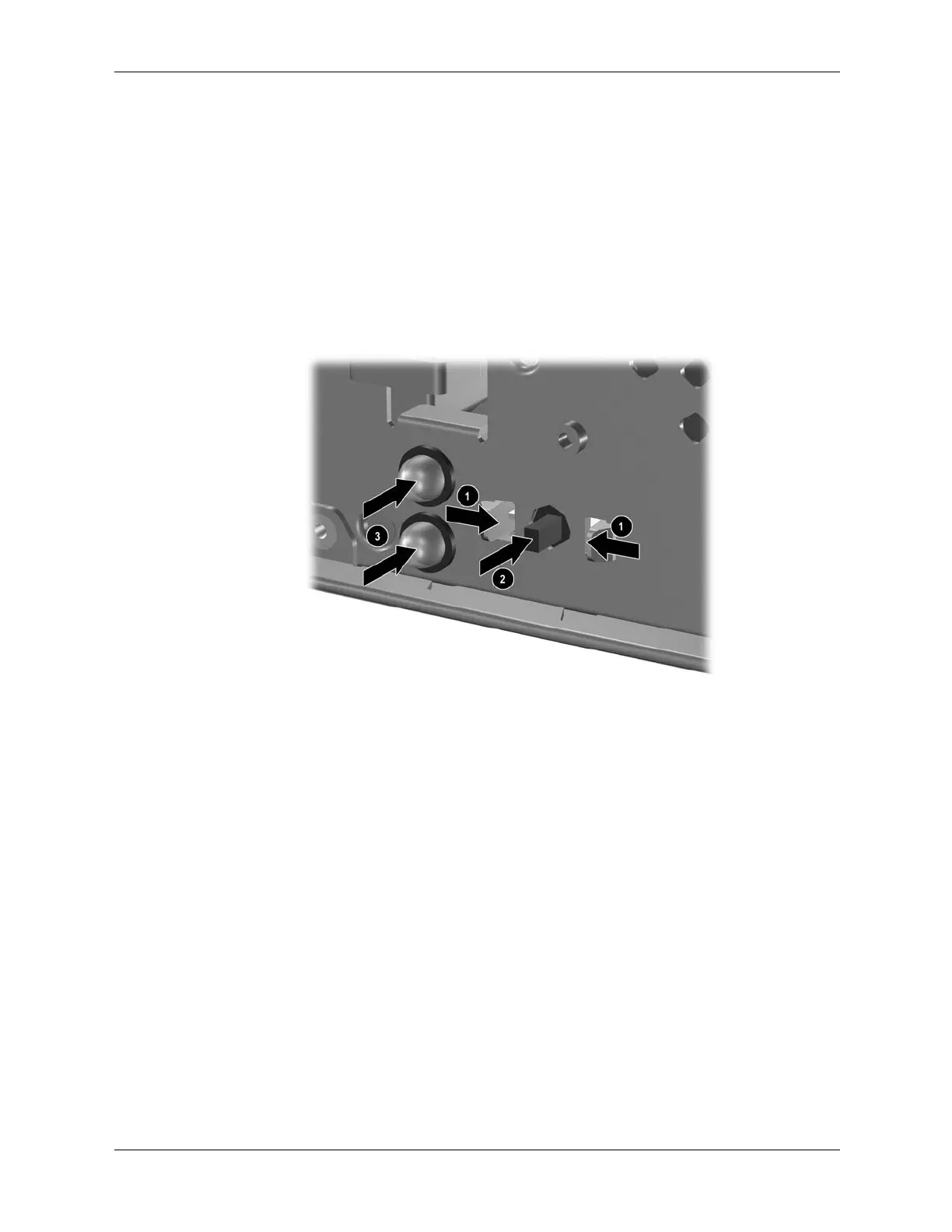

4. Squeeze the switch holder retaining clips together at the front of the chassis 1 and push the
switch assembly out of the chassis 2. Push the two LEDs out of the chassis 3.
5. If necessary, the LED holders may also be removed by squeezing the clips and pushing them
out of the front of the chassis 4.
To install the power switch and LEDs, reverse the removal procedure.

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
