Service Reference Guide, dc7100 361288-003 7–15
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

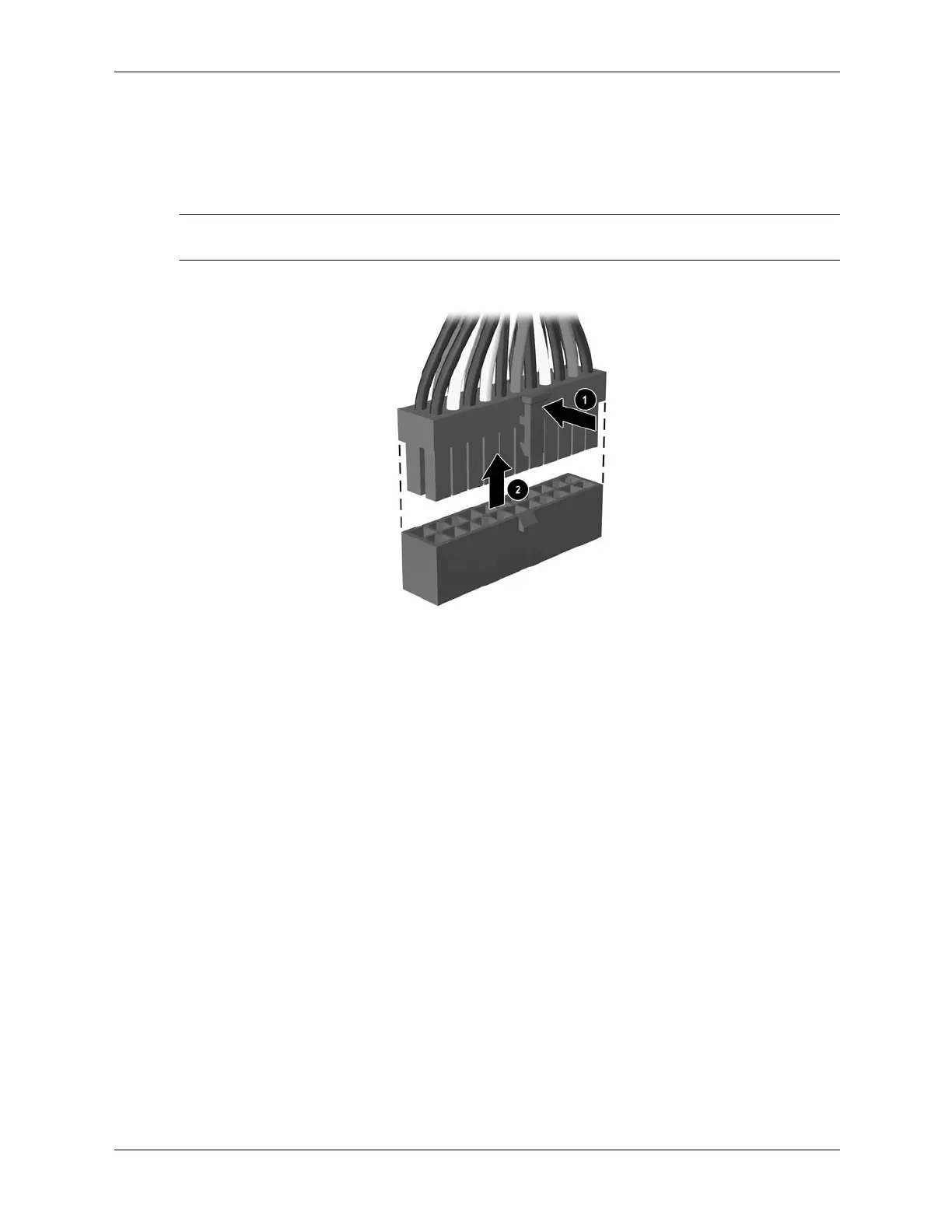

When removing the power supply power cables from the P1 or P3 connectors on the system
board, always follow these steps:
1. Squeeze on the top of the retaining latch attached to the cable end of the connector 1.
2. Grasp the cable end of the connector and pull it straight up 2.
Ä
CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could damage the
cable and result in a failed power supply.
