7–36 361288-003 Service Reference Guide, dc7100
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

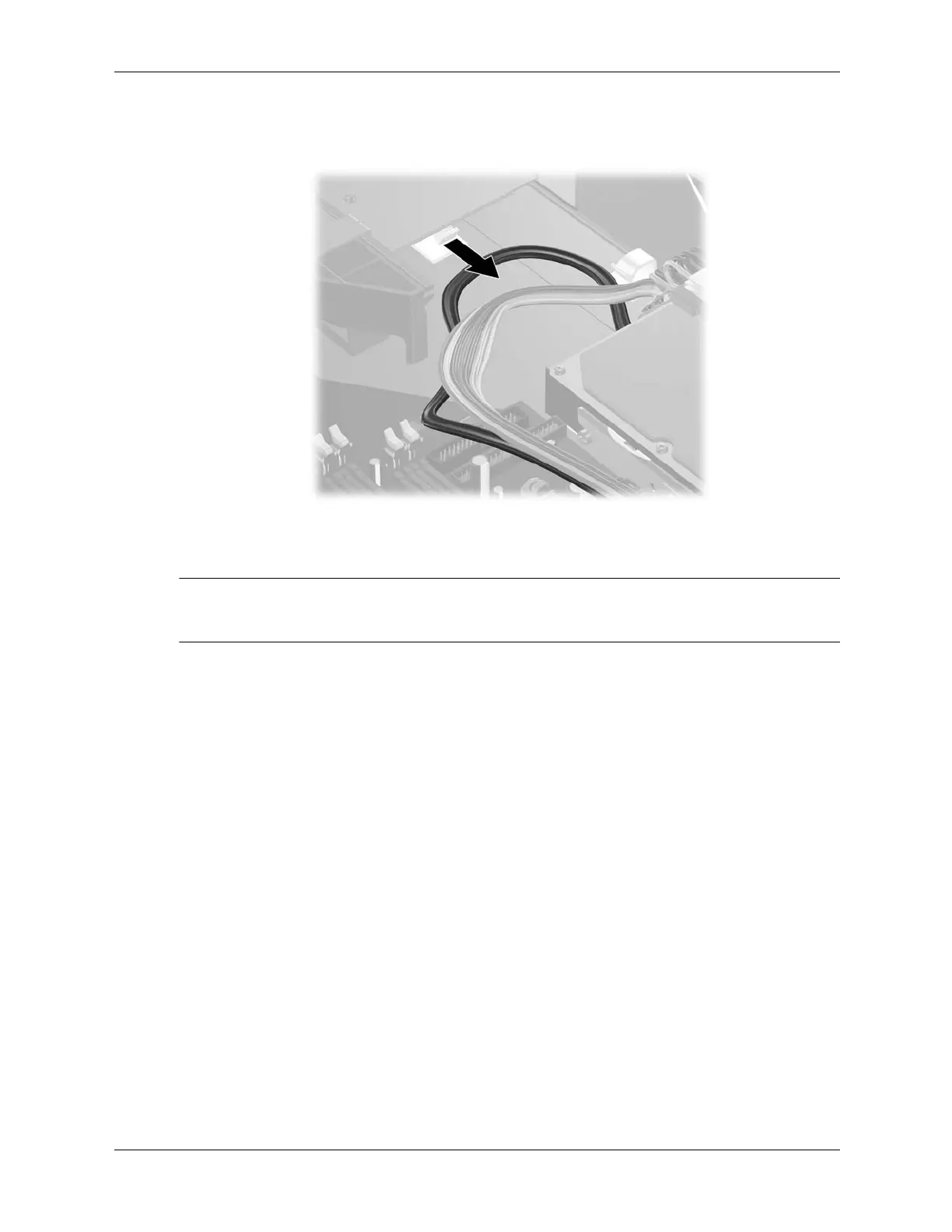

7. Remove the SATA cable from the front and side retaining clips.
8. Push the empty drive cage back into its locked position.
Ä
CAUTION: Make sure the flat ribbon cables are folded down and the SATA and power cables are
pushed out of the way to prevent their being damaged when the drive cage is pushed into the locked
position.
