Service Reference Guide, dc7100 361288-003 7–45
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

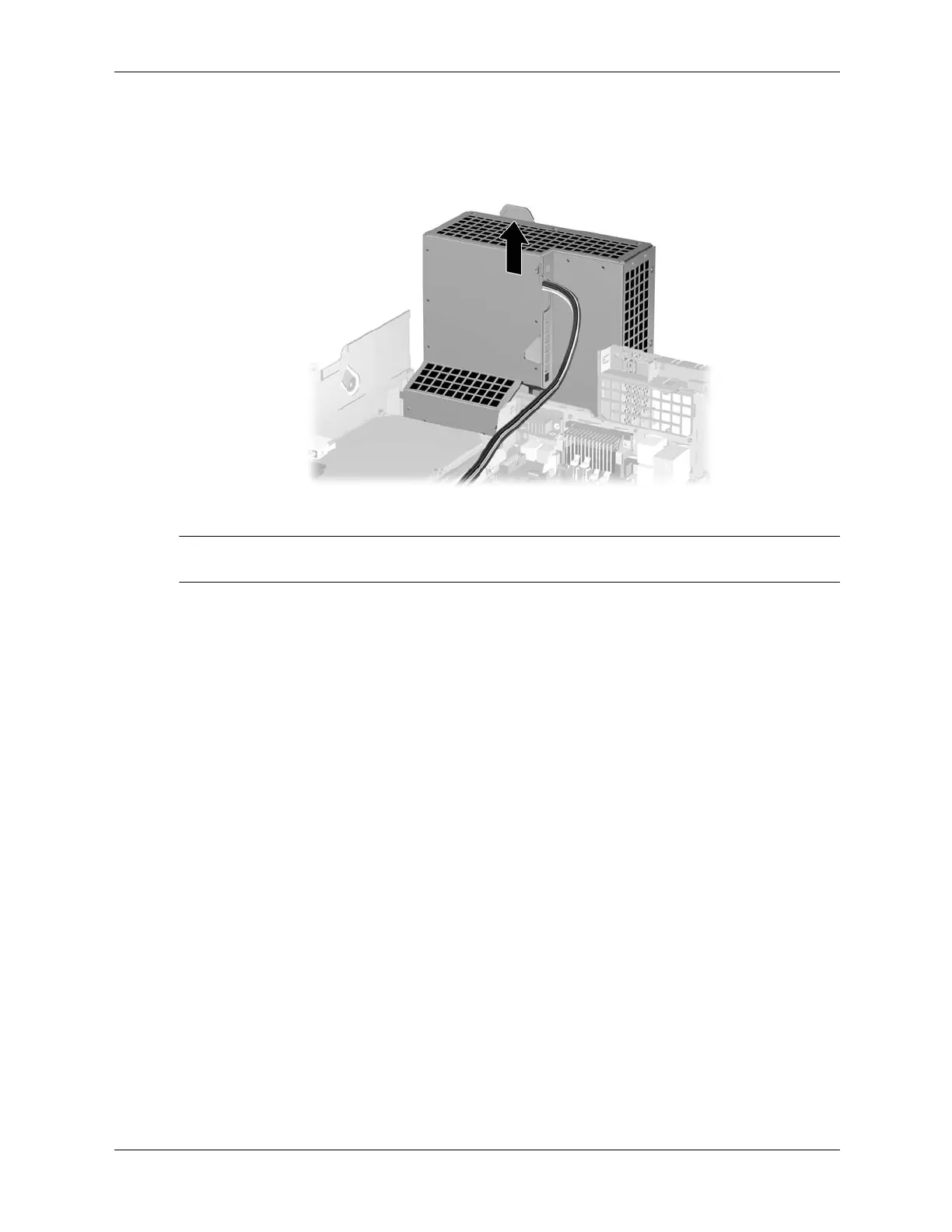

9. Lift the power supply up and out of the chassis.
To install the power supply, reverse the removal procedure.
Ä
CAUTION: When installing the power supply cables, make sure they are properly positioned so they
are not cut by the drive cage and are not pinched by the rotating power supply.
