HP Compaq dc7100 DT - Page 173

Service Reference Guide, dc7100 361288-003 7–47
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

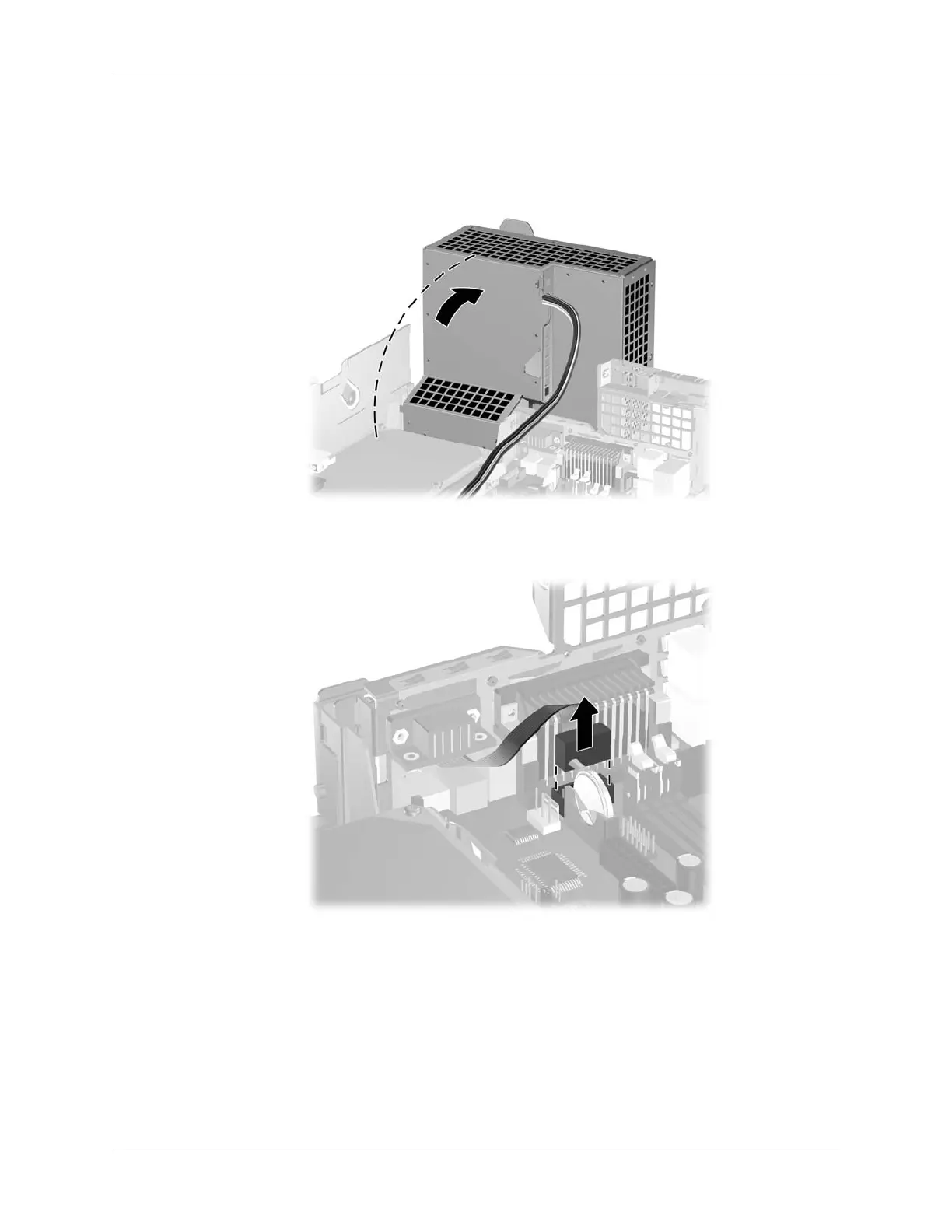

7. Rotate the power supply to its upright position.
8. Disconnect the serial port from the system board
9. Disconnect the balance of the cables from the system board. .
