6–16 361288-003 Service Reference Guide, dc7100
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis

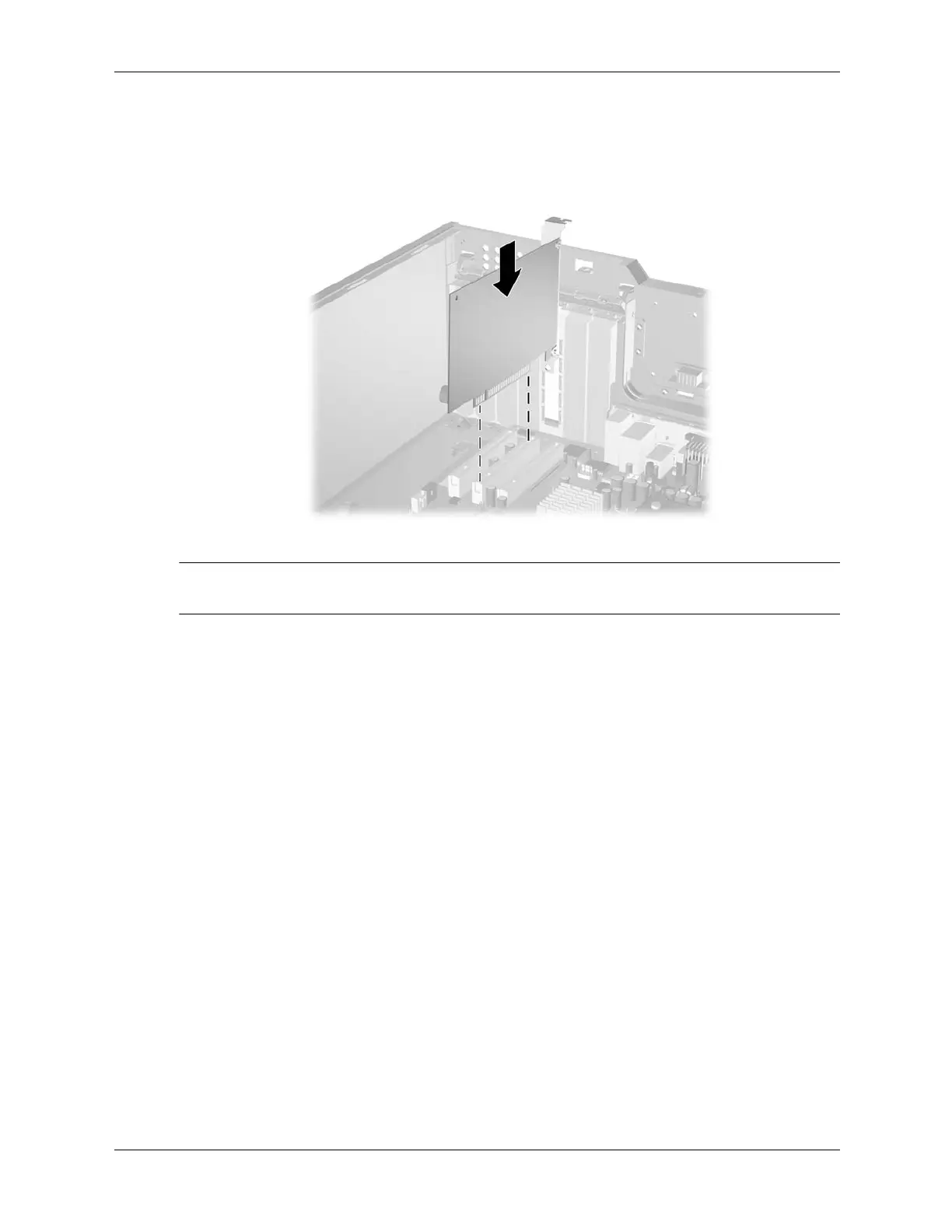

11. Slide the bracket on the end of the expansion card down into the slot on the back of the
chassis and press the card down firmly into the socket on the system board.
✎
When you install an expansion card, make sure you press firmly on the card so that the whole
connector seats properly in the expansion card socket on the system board.
12. Close the expansion slot latch, making sure that it snaps firmly into place.
13. Connect external cables to the installed card and internal cables to the system board as
needed.
14. Replace the computer access panel.
15. If you normally lock the Smart Cover Lock, use Computer Setup to relock the lock and
enable the Smart Cover Sensor.
16. Reconfigure the computer, if necessary. Refer to the Computer Setup (F10) Utility Guide on
the Documentation Library CD for instructions about using Computer Setup.

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
