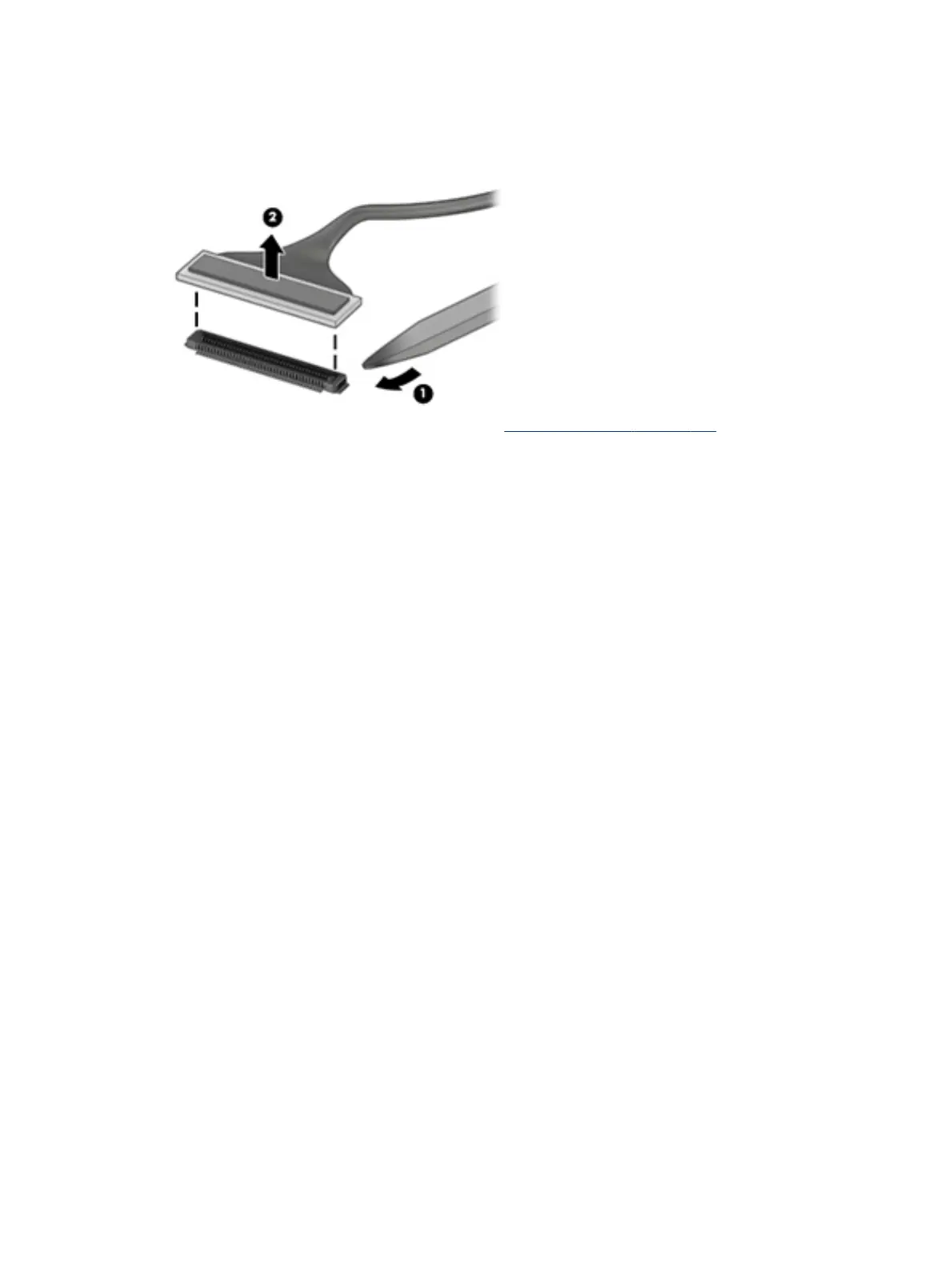

● If the connector has a plastic pull tab, pull the tab to disconnect. Otherwise, use at tool under the
connector to remove evenly. Do not pull on the cable to remove.
● Press evenly when reseating, reconnecting, or installing the connector.
For more information about cable management, see Cable management on page 136.
Multiple-pin vertical connector (LVDS cable to system board) 139
