Table 3-1 Computer major component descriptions and part numbers (continued)
Item Component Spare part number
(9) Battery, 2 cell, 47 Wh M33875-005
(10) WWAN module
NOTE: The WWAN protective tape kit is available as spare part number M51648-001.
Intel XMM 7360 LTE-Advanced (CAT 9) L70670-005
(11) Power button board and cable with audio assembly L67420-001
(12) WLAN antennas M51638-001
(13) POGO cable and connector L67422-001
(14) Kickstand L67409-001
(15) Kickstand hinges M51637-001
(16) Camera module
HD camera (8 MP) M75415-001
IR camera (2 MP) L67412-001
(17) Volume board M73529-001
(18) IR LED and cable M75416-001
(19) USB Type-C® bracket L67409-001
SIM board M51642-001
SIM board cable L67423-001
Microphone cable L67421-001
Plastics kit

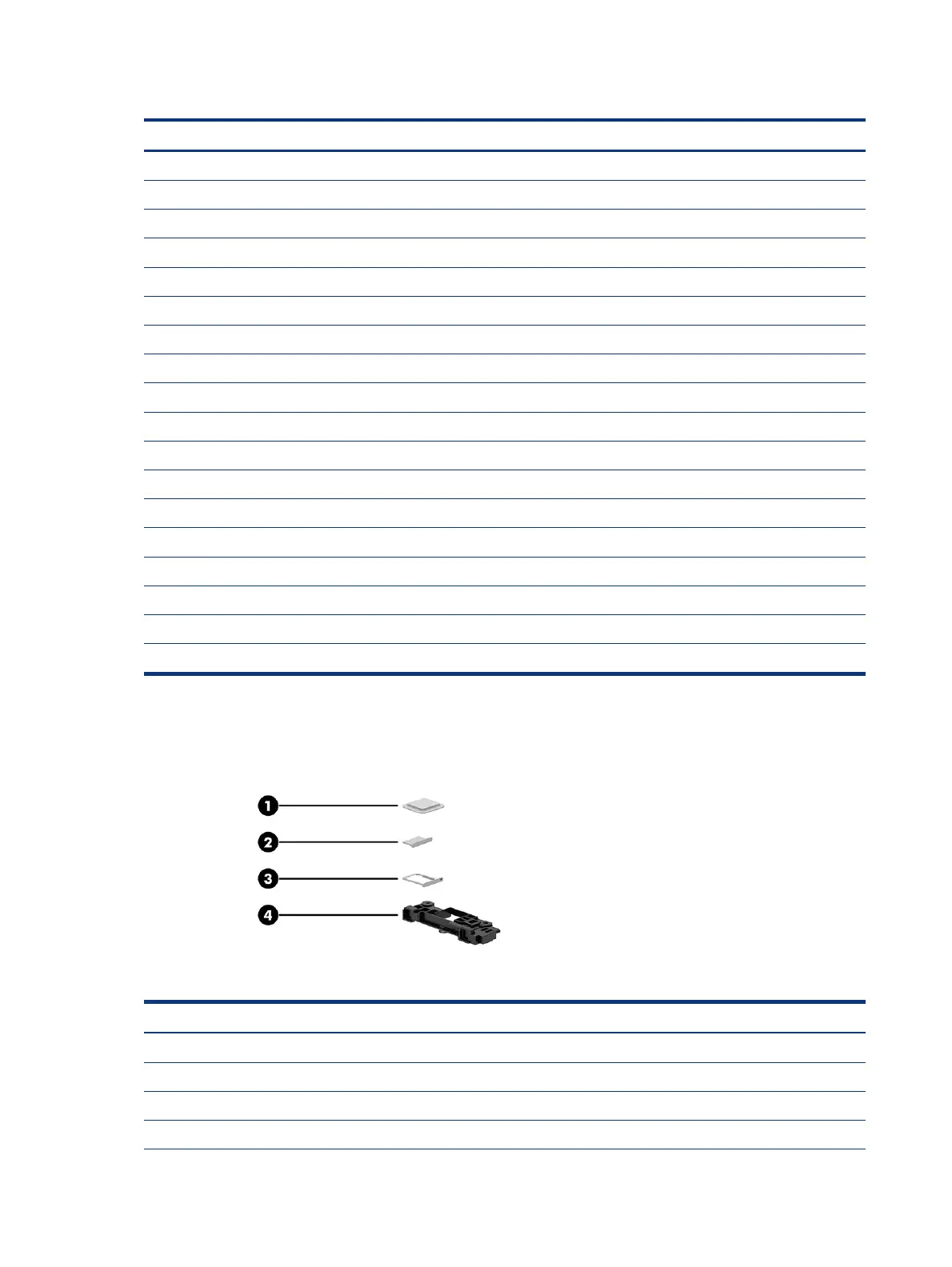

To identify the plastics kit, use this illustration and table.
Table 3-2
Plastics kit descriptions and part numbers
Item Component Spare part number
Plastics kit, includes the following parts: M51643-001
(1) Fingerprint reader insert
(2) SIM insert
(3) SIM tray
