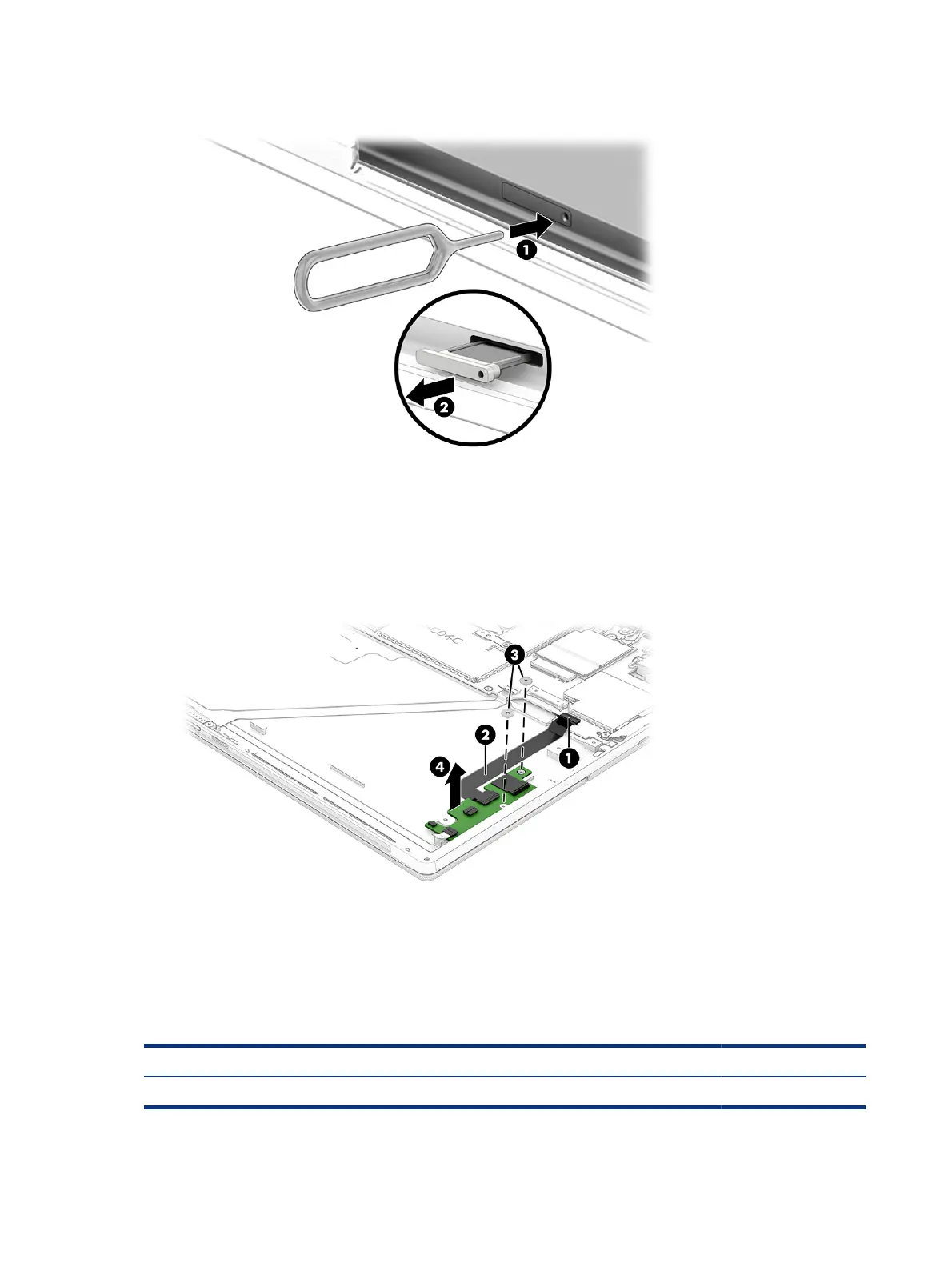

1. Insert a tool into the opening in the SIM card tray (1), and then remove the SIM card and tray (2).
2. Disconnect the cable from the ZIF connector on the system board (1).
3. Peel the cable o the computer chassis (2).
4. Remove the two Phillips M1.4 × 1.6 screws (3) that secure the board.
5. Remove the board from the computer (4).
Reverse this procedure replace the SIM card holder board.
Kickstand hinges
To remove the kickstand hinge, use this procedure and illustration.
Table 6-5
Kickstand hinges description and part number
Description Spare part number
Kickstand hinges L67409-001
50 Chapter 6 Removal and replacement procedures for authorized service provider parts
