HP Elite x2 G8

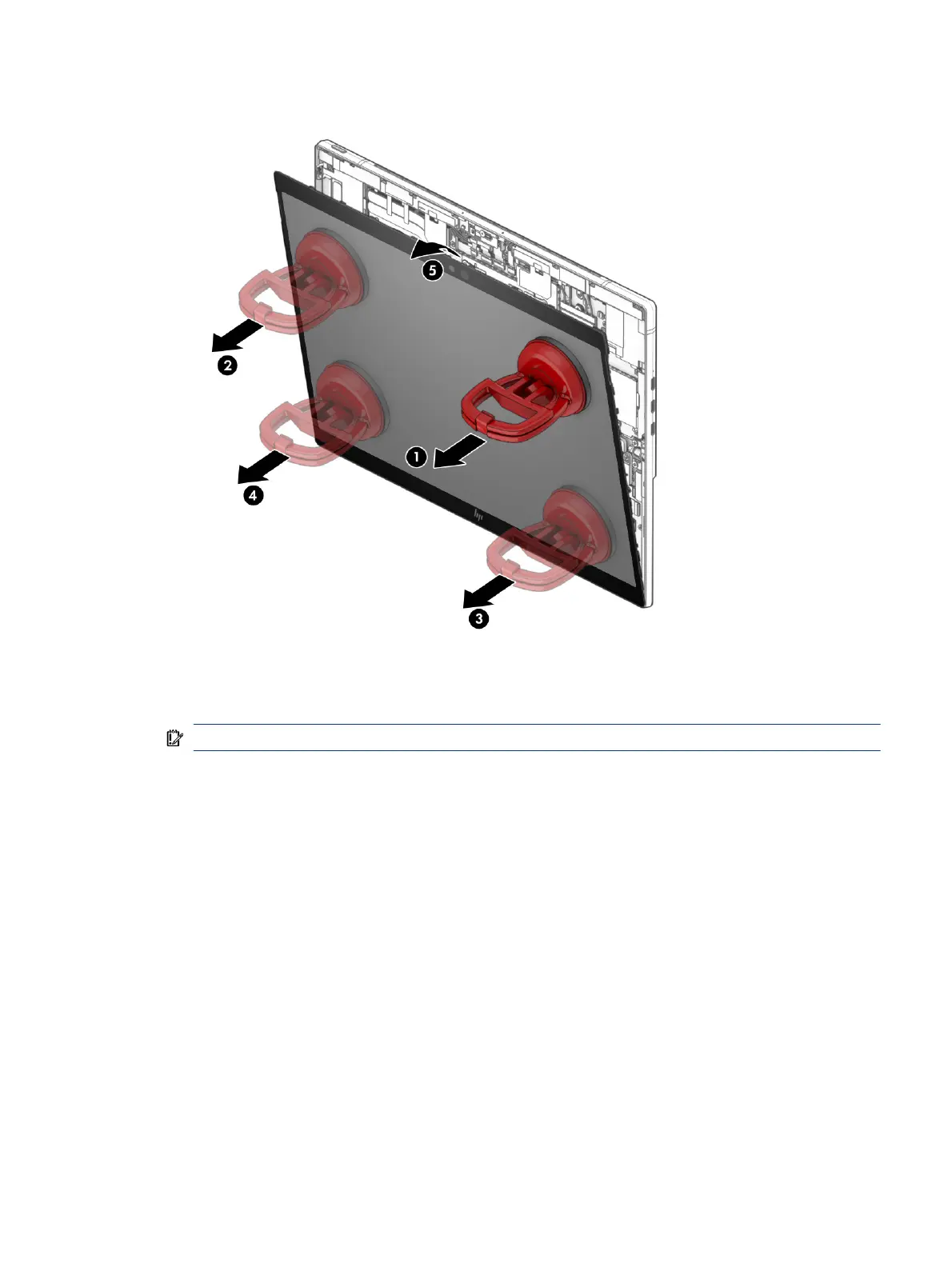

5. Rotate the top of the panel down enough to access the cables underneath (5).
6. Lift the panel (1).
7. Disconnect the battery cable (2) from the system board.
IMPORTANT: Be careful when opening to avoid tearing cables. Be sure to open from the top
8. Remove the tape from the display cable connector (3), and then disconnect the display cable (4) from the
system board.
Display panel 45
