Table 6-8 Camera module descriptions and part numbers
Description Spare part number
IR camera (2 MP) L67412-001
HD camera (8 MP) M75415-001
Microphone cable L67421-001
IR LED cable M75416-001
IMPORTANT: Use care to prevent damaging the zero-insertion force (ZIF) connector and ribbon cable.
Before removing the display panel, follow these steps:
▲ Prepare the computer for disassembly (see Preparation for disassembly on page 40).

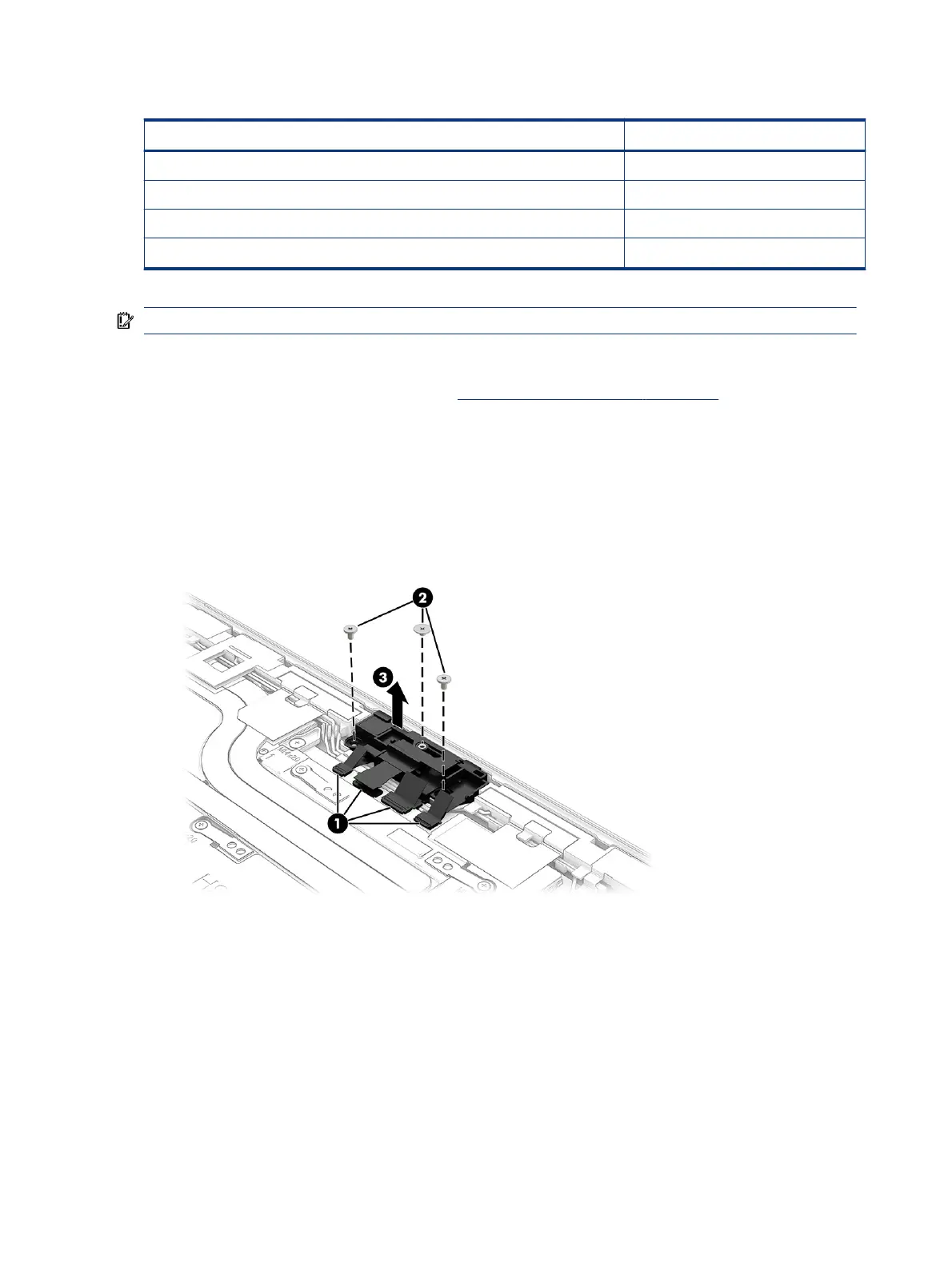

Remove the camera module:
1. Disconnect the four cables from the ZIF connectors on the camera module (1).
2. Using a Phillips #0 screwdriver, remove the two Phillips M1.4 × 2.5 screws (2) that secure the module to
the computer, and then remove the module from the computer (3).
3. If you need to remove the IR LED cable from the camera module, pull the cable straight up and o the
camera module (1).
54
Chapter 6 Removal and replacement procedures for authorized service provider parts
