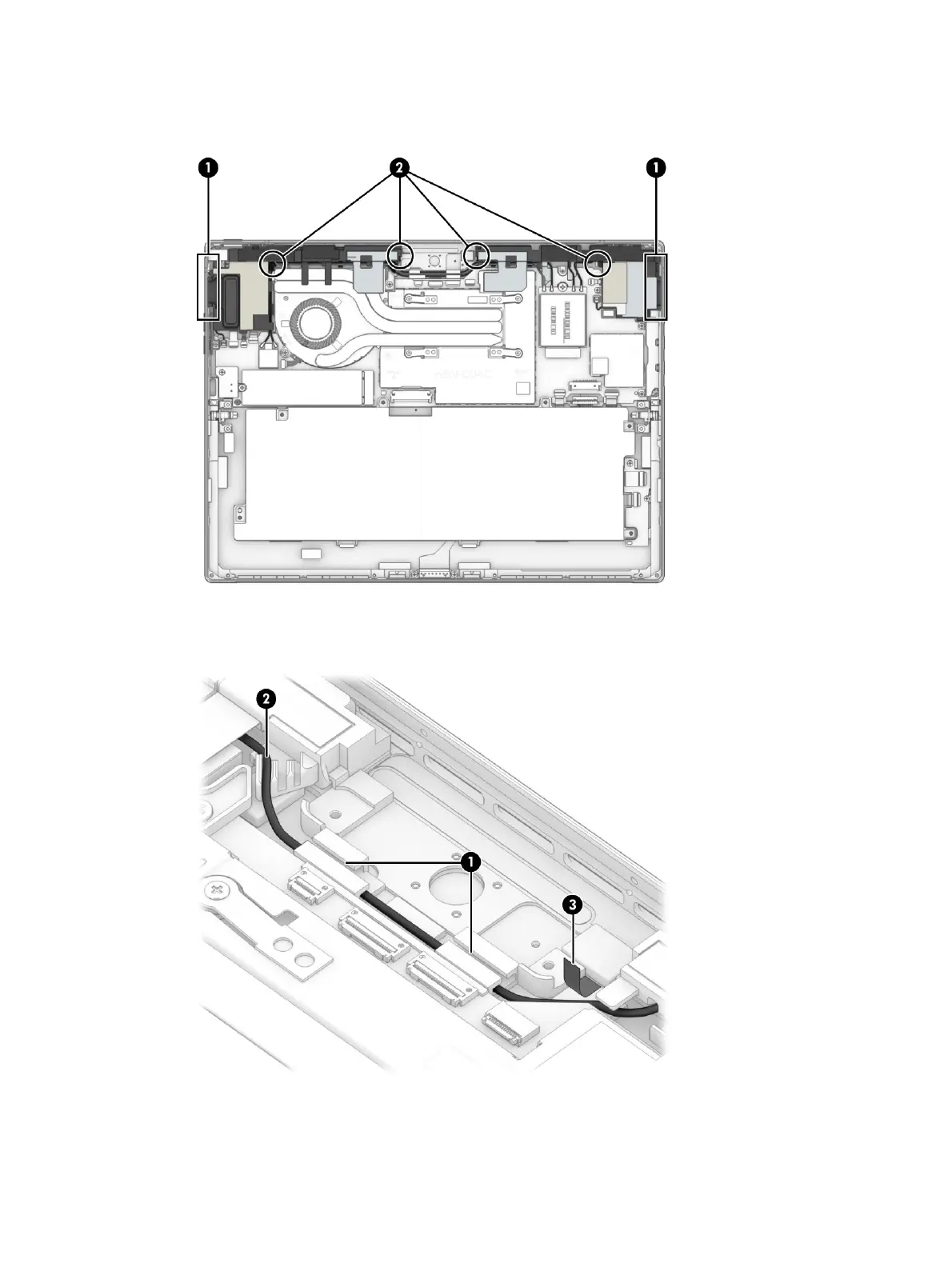

8. Use the following illustrations to help with installing the antennas and speakers by noting the location of
(1) computer notches and (2) speaker snaps.
9. To install the number 1 antenna cable, insert the cable into the slots (1) and (2), and then place the
contact over the cable (3).
Speakers with antennas 57
