Hardware options installation 31
9.

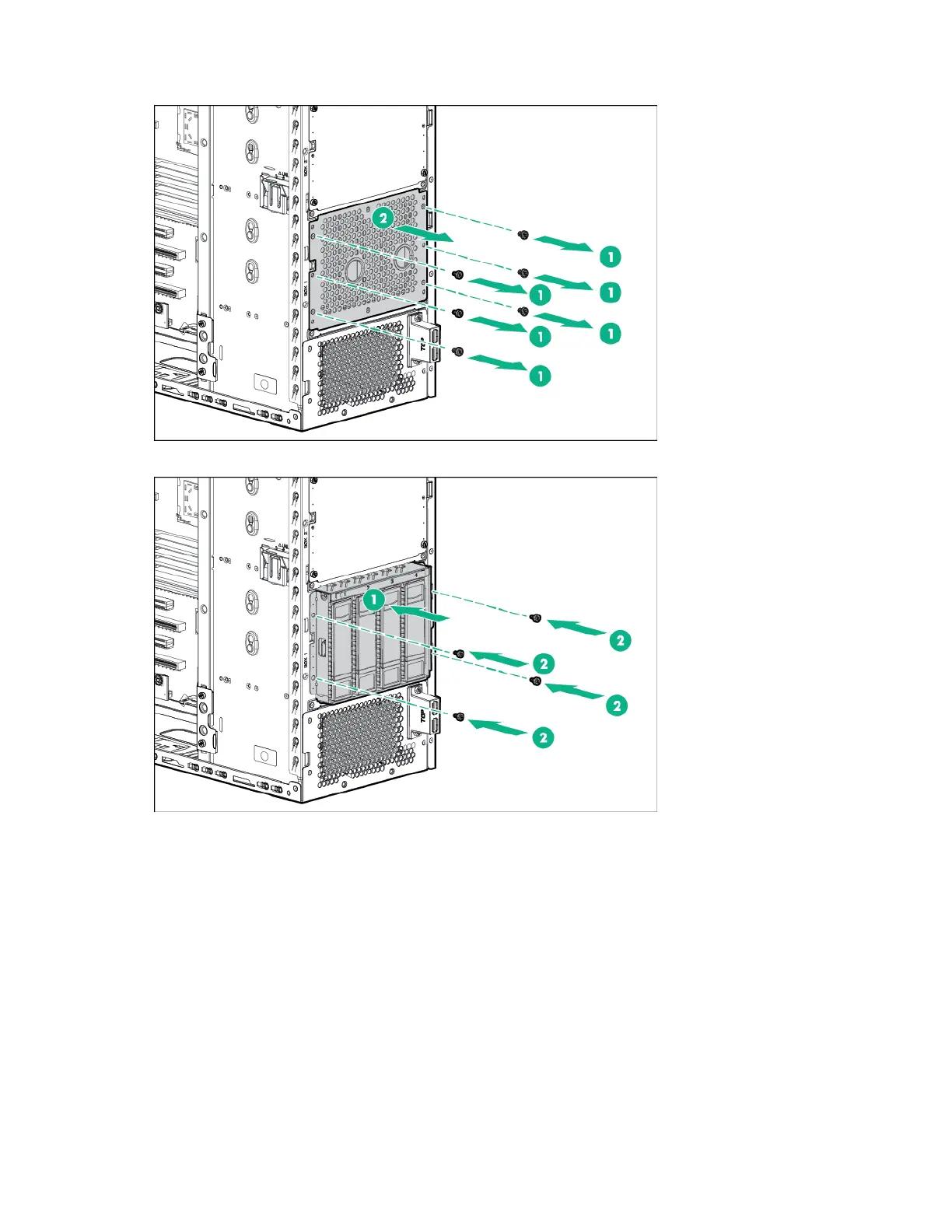

Remove the installed drive cage assembly.
10. Install the 4 LFF hot-plug drive cage assembly in box 1.
11. Connect the drive cage cables:
a. Connect one end of the Mini-SAS cable to the drive backplane and the other end to the system
board.
b. Connect the 8-pin power cable to the drive backplane.
