Hardware options installation 46
a.
Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Place the server on its side.
4. Remove the access panel (on page 17).
5. If installed, remove the PCI air baffle (on page 20).
6. Remove the system air baffle (on page 21).
7. If you intend to use an FBWC module, install the module on the storage controller.

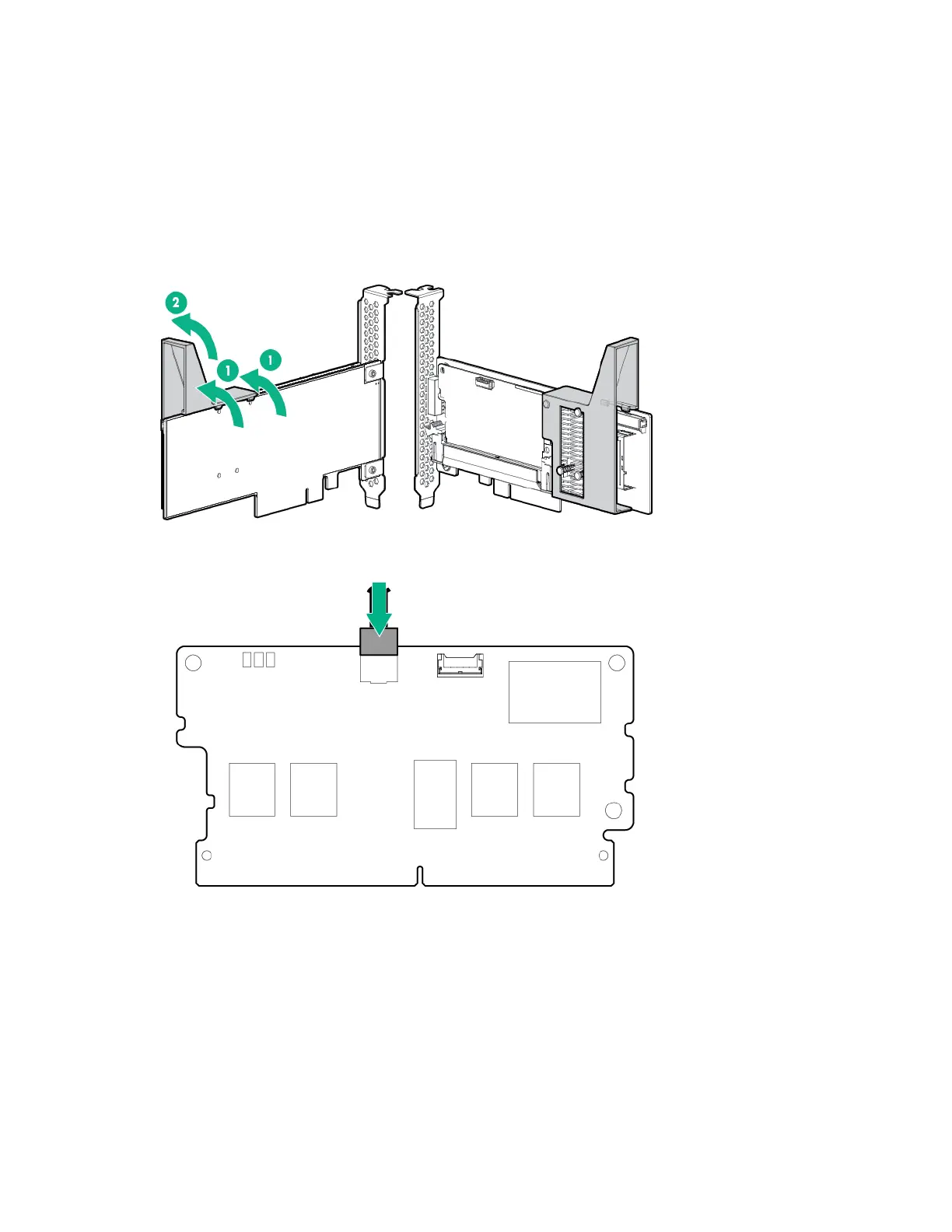

a. If you are installing an HPE Smart Array P440 Controller, remove the air scoop.
b. Connect the cache module backup power cable to the module.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP HPE ProLiant ML110 Gen9 and is the answer not in the manual?

HP HPE ProLiant ML110 Gen9 Specifications

General IconGeneral
Processor Sockets1
Memory Slots8 DIMM slots
ProcessorIntel Xeon E5-2600 v3/v4
ChipsetIntel C610
MemoryDDR4 SmartMemory
StorageUp to 8 LFF or 16 SFF drives
Storage ControllerDynamic Smart Array B140i or P440ar
RAID SupportRAID 0, 1, 5, 10 with optional controller
Network1GbE
Expansion SlotsPCIe slots
Form FactorTower
Operating System SupportWindows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware
Maximum Internal Storage16 TB
