Hardware options installation 51
10.

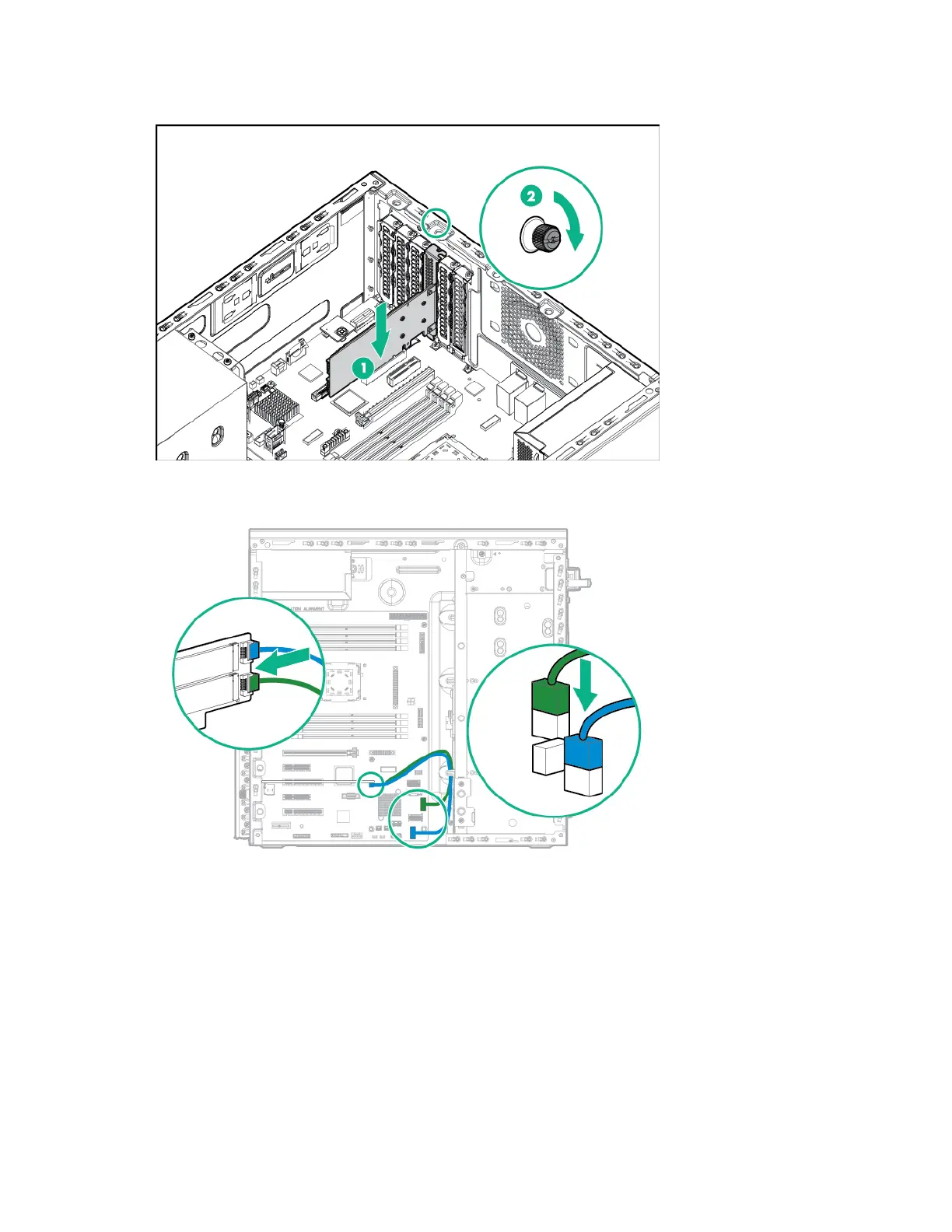

Install the M.2 SSD enablement board with SSD modules installed and close the PCIe slot cover
retainer.
11. Connect the SATA cables to the enablement board. Connect the other end of the SATA cables to the
SATA connectors on the system board. Port 1 to SATA 1 and port 2 to SATA 2.
12. Install the PCI fan and baffle option ("PCI fan and baffle option" on page 57).
13. Install the system air baffle (on page 22).
14. Install the access panel (on page 18).
15. Return the server to an upright position.
16. Connect each power cord to the server.
17. Connect each power cord to the power source.
18. Power up the server.
