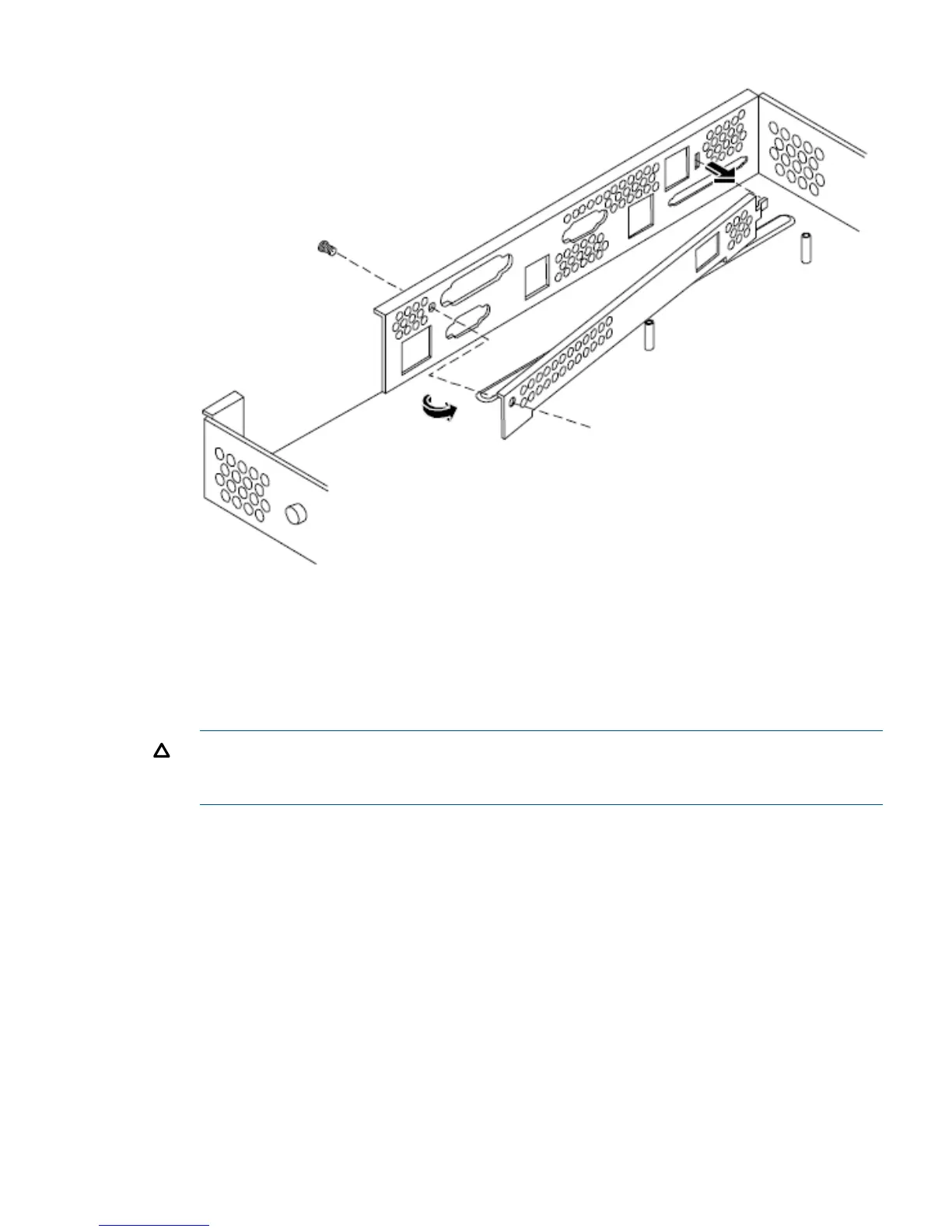

Figure 20 Removing the MP Card Blank
5. Remove the insulator between the battery and the battery socket on the management processor
card.
6. Align the MP card over the two mounting posts on the system board and align the three
connectors of the MP card with the cutouts on the rear panel.
7. Carefully push the 10/100 Management LAN, 15-pin VGA and 25-pin serial connectors
through their openings on the rear panel.
CAUTION: Special care should be used when mating the connectors of the MP card with
the sheet metal of the rear panel. It is possible to damage the EMI gasket of the RJ-45 of the
card.
8. Connect the MP card cable to its connector on the system board.
9. Screw in the two mounting screws that connect the MP card to the internal chassis post.
Optional Management Processor Card (MP) 25
